Description

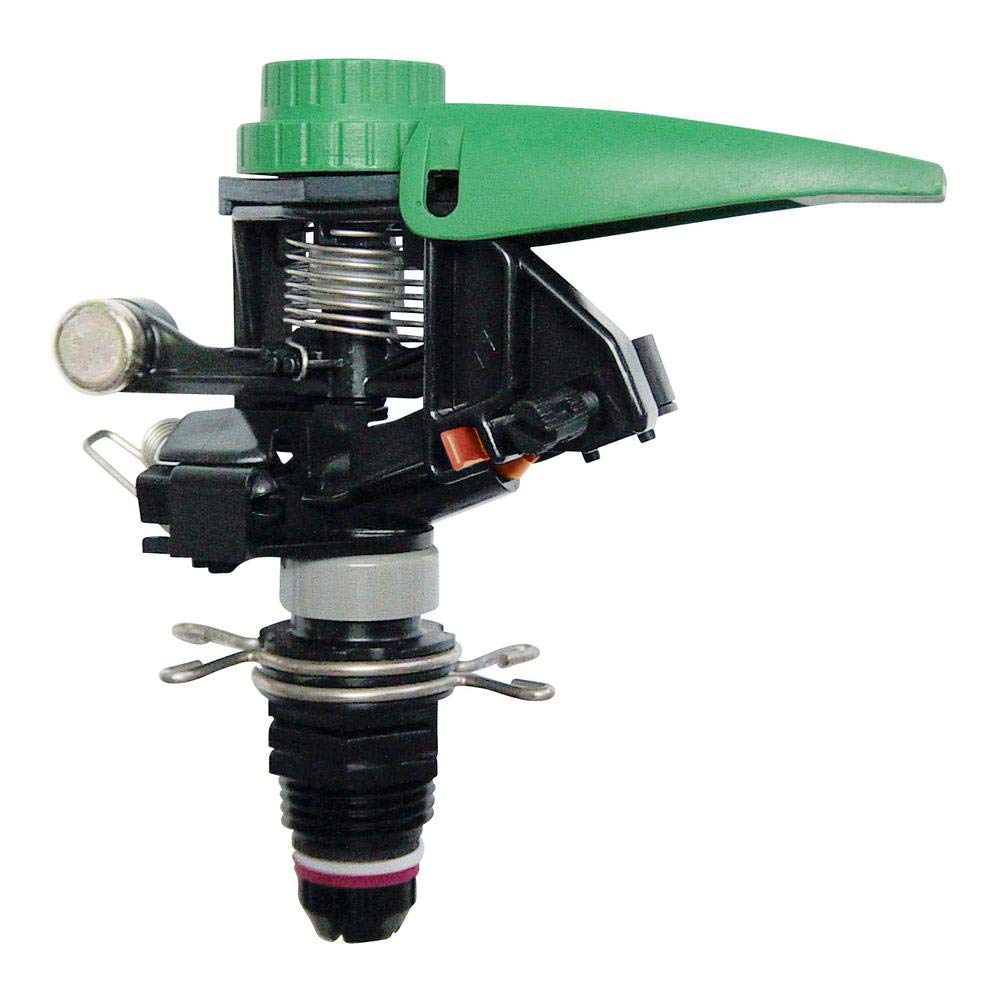

xRain Bird P5-R Plus Plastic Impact Sprinkler
Meet the #1 selling plastic impact sprinkler from Rain Bird. Built on a professional-grade heritage, this compact unit blends durable polymer and stainless-steel components with thoughtful water-control features for dependable irrigation of lawns, gardens, and landscapes. It draws on the design strengths of the LG-3 Mini-Paw and AG-5 Maxi-Paw lines, delivering proven performance in a lightweight, user-friendly package.
Durability and ease of maintenance are at the core of the P5-R Plus. A brass weighted spray guide arm, part of the Water Saver system, helps curb side splash near walls and walkways while a double-weighted arm promotes steadier rotation and extended reach. The unit ships with a Blue #8 nozzle pre-installed and includes four additional interchangeable nozzles for flexible flow options. When you need more uniform coverage, the diffuser screw breaks the water into smaller droplets and enables up to 25 percent radius reduction for tighter zones.
Performance in diverse conditions is another hallmark. The straight-through-flow design supports reliable operation even with dirty or mineral-rich water, making it a viable choice for reclaimed water irrigation in appropriate settings. Coverage is fully adjustable: opt for a full 360 degree circle or a partial circle from 20 to 340 degrees, with infinite pattern adjustment to tailor patterns to irregular beds or slopes. Spray distance is versatile as well, adjustable from 24 to 45 feet to address nearby turf, shrubs, or paths while minimizing overspray.
Technical notes and installation are straightforward. The sprinkler features a 1/2 inch threaded male pipe outlet for easy mounting onto standard risers. With Rain Bird, you get The Intelligent Use of Water, a philosophy reflected in engineering that emphasizes efficiency, durability, and adaptability for residential, commercial, and light agricultural applications.
Core features

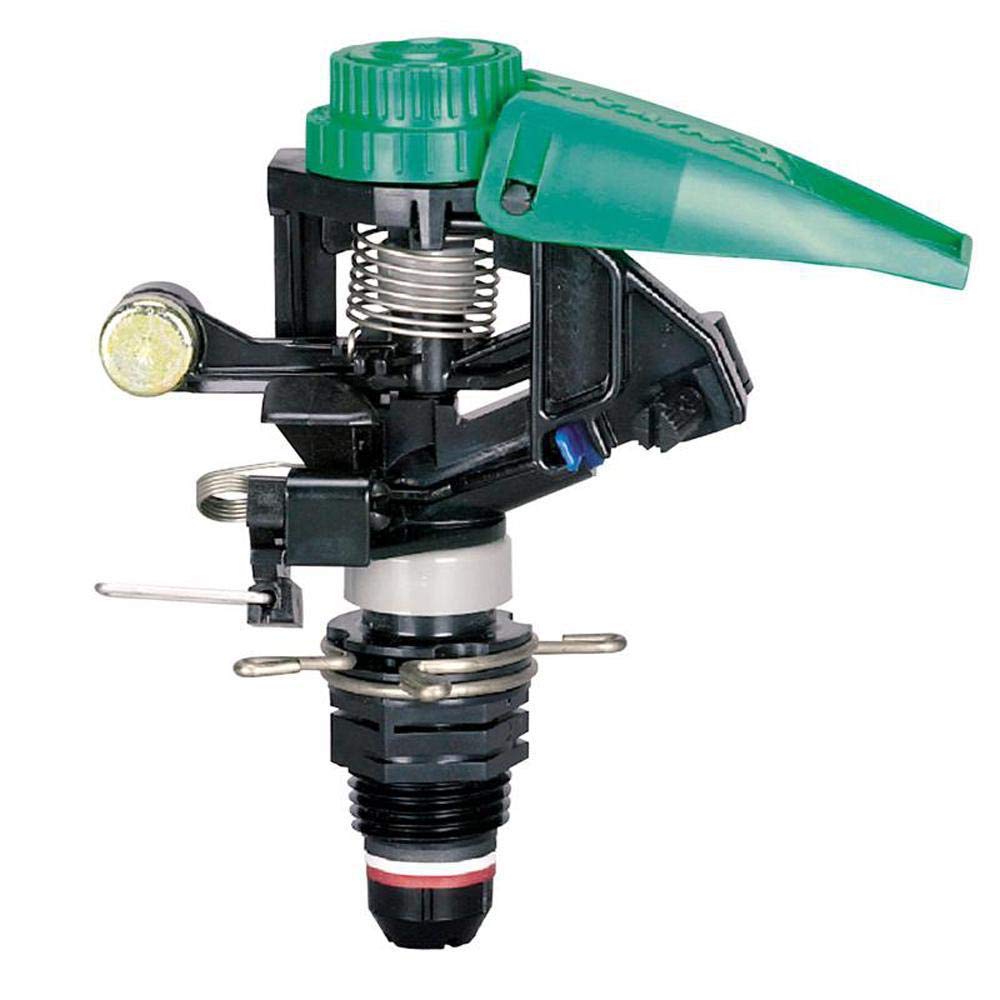

- #1 selling plastic impact sprinkler; includes 06, 07, 10 and 12 gallon per minute nozzles to customize water flow
- Double brass-weighted arm for slower rotation and improved water coverage
- Diffuser screw creates smaller droplets for uniform coverage
- Water Saver brass weighted PJ spray guide arm controls stream and reduces splash
- Removable bayonet nozzle for easy cleaning
- Straight-through-flow design for better performance in dirty water conditions

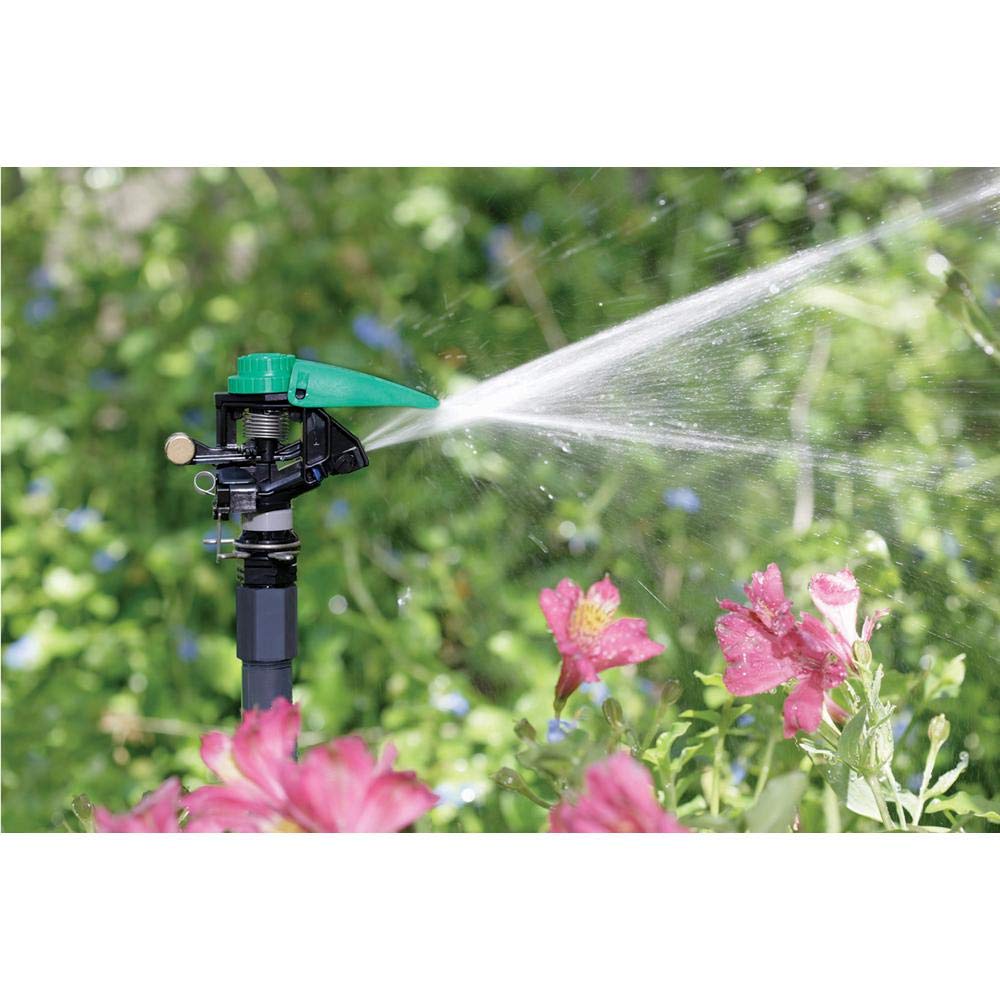

- Full circle 360° or part circle 20° to 340° with infinite pattern adjustment

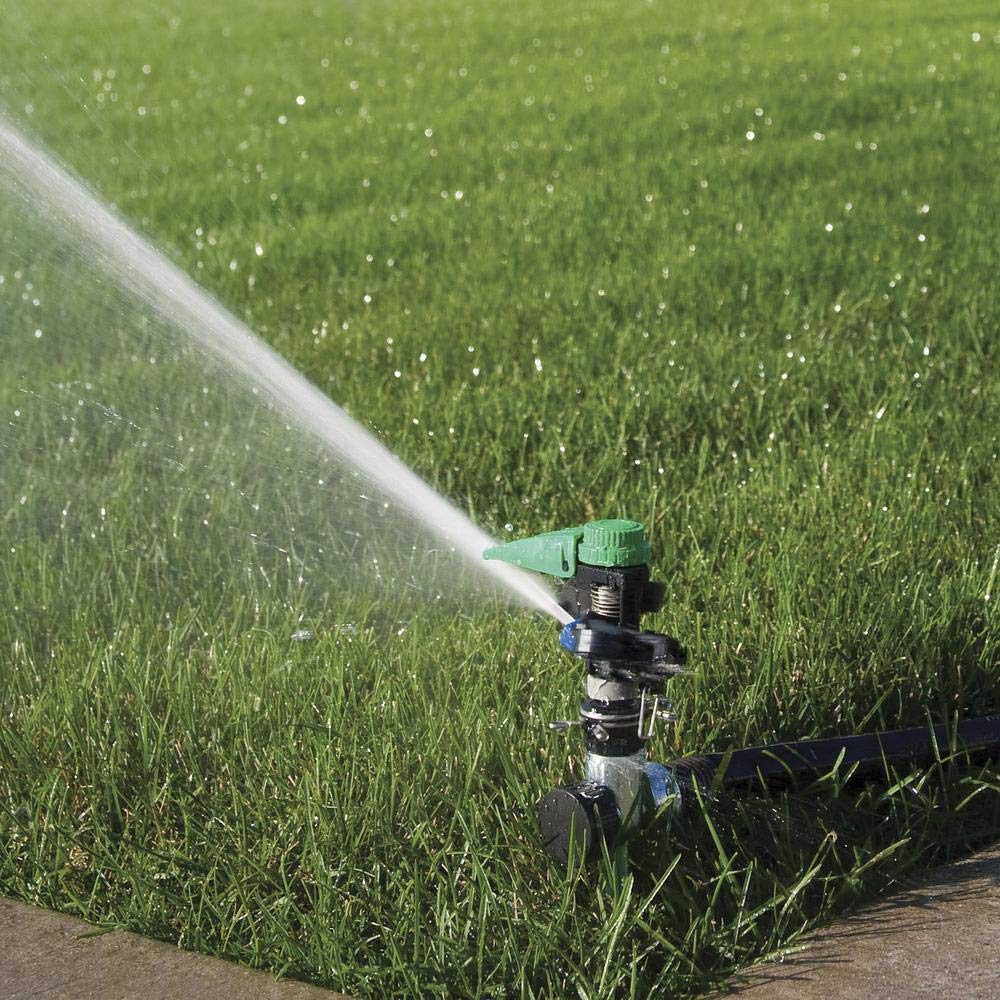

- 24' - 45' spray distance
- 1/2" threaded male pipe outlet for easy installation
What you get
- Blue #8 pre-installed nozzle
- (4) additional interchangeable nozzles: 06, 07, 10, 12
- Flexible coverage options with full or partial circle adjustability
- Compatible with reclaimed-water irrigation systems where permitted
FAQ
Q: What coverage options does the Rain Bird P5-R Plus offer?
A: Full 360° coverage or partial-circle settings from 20° to 340°, with infinite pattern adjustment.
Q: What materials and design contribute to the P5-R Plus durability?
A: Durable high-impact polymer, stainless steel parts, brass weighted arm, and a removable nozzle for easy cleaning.
