Description
xOverview
The Rain Bird HV100FF is a compact, high-value inline valve engineered for below-ground irrigation where space matters. With a 1-inch female threaded inlet and outlet and a tight 2.54-inch spin radius, it helps maximize valve-box capacity and keeps installations tidy in tight landscapes.
Built to endure outdoor conditions, this valve combines a glass-filled polypropylene body, Buna-N diaphragm, and a stainless-steel spring for reliability. A self-cleaning 90-mesh filter further reduces debris-related wear, supporting consistent performance across seasons. The result is a dependable valve that blends rugged construction with practical design for everyday irrigation needs.
Smart design for reliability

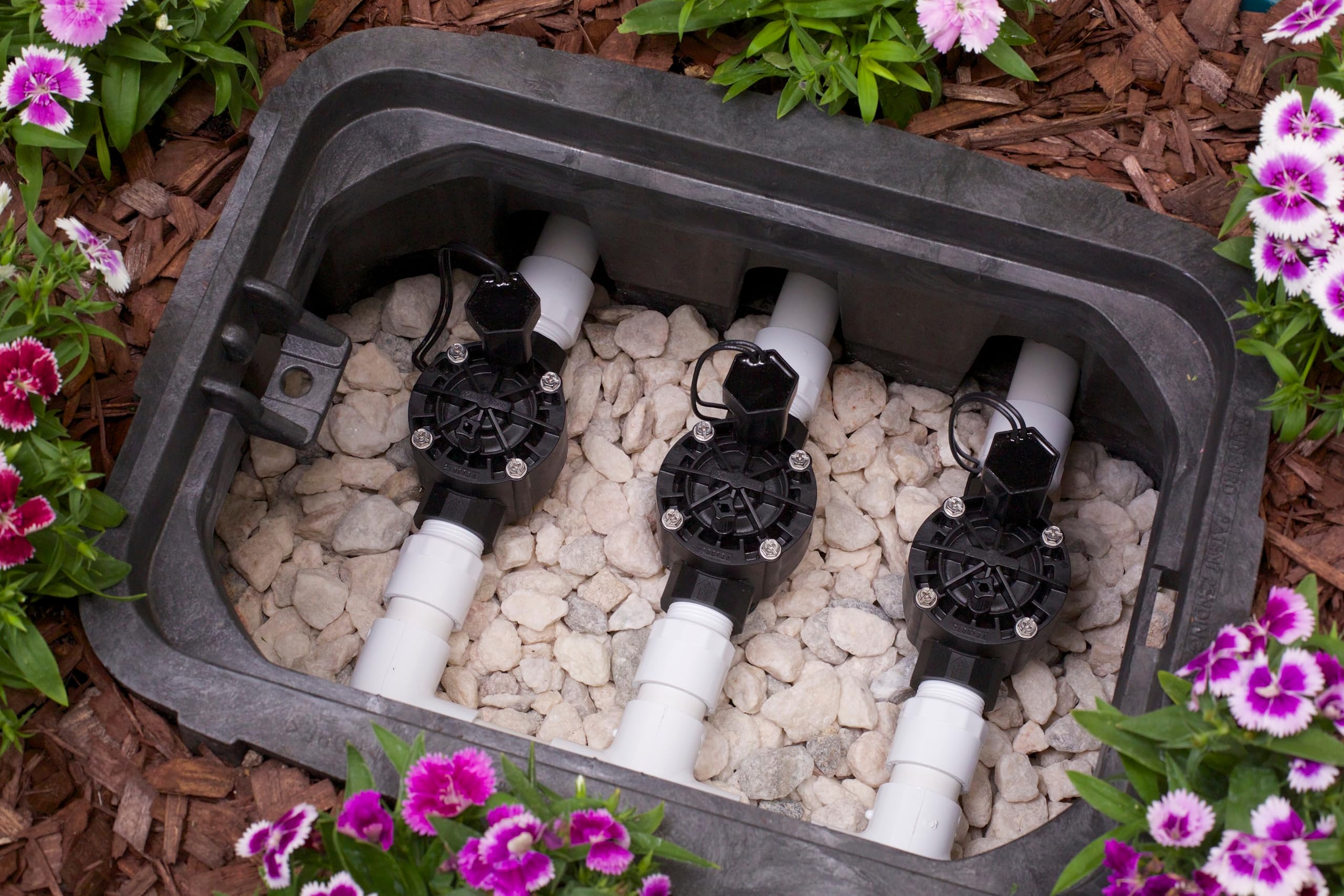

- Space-saving 1 inch female threaded inlet and outlet delivers reliable performance

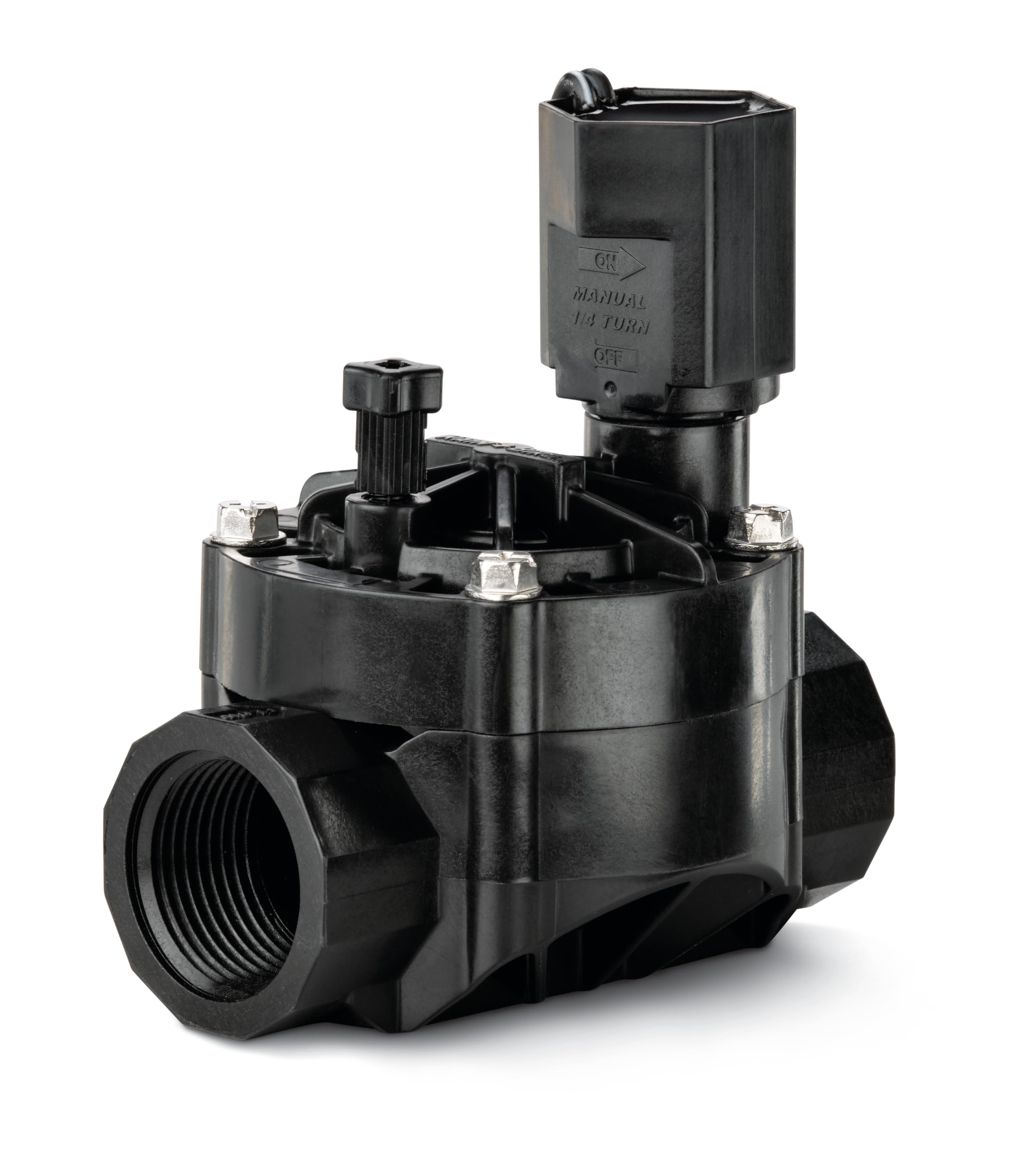

- Compact 2.54 inch spin radius makes tight installations more feasible

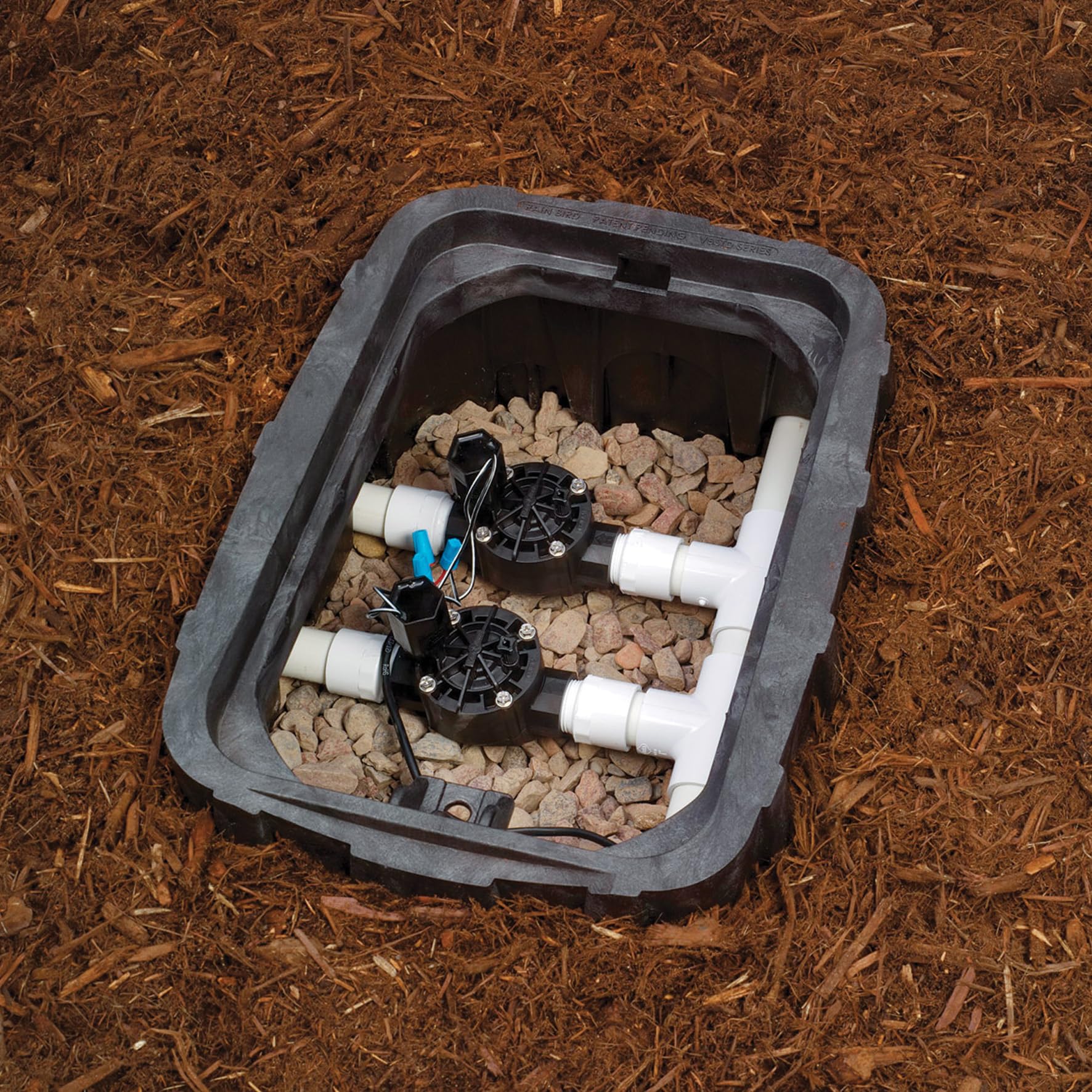

- Patented eccentric diaphragm enables smoother closing with reduced water hammer
- Glass-filled polypropylene body with Buna N diaphragm and stainless steel spring for durability
- Self-cleaning 90-mesh filter guards against debris
- Reverse-flow design closes the valve if the diaphragm fails to prevent flooding
Installation and maintenance

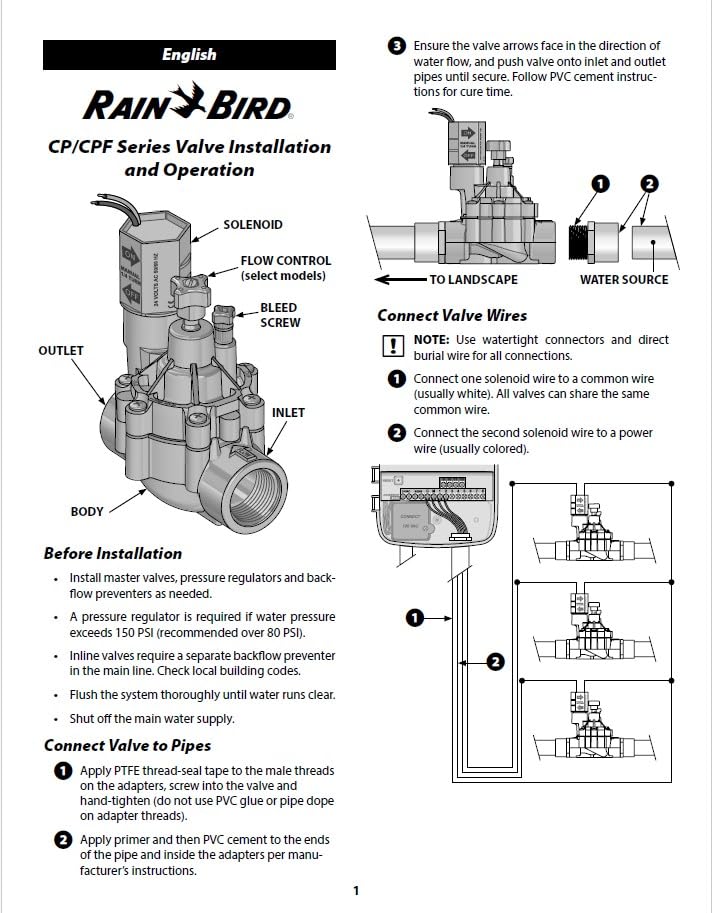

- External bleed screw enables easy flushing after installation and during start up
- Internal bleed design provides spray-free manual operation
- Captive multi-drive screws simplify access and bonnet removal

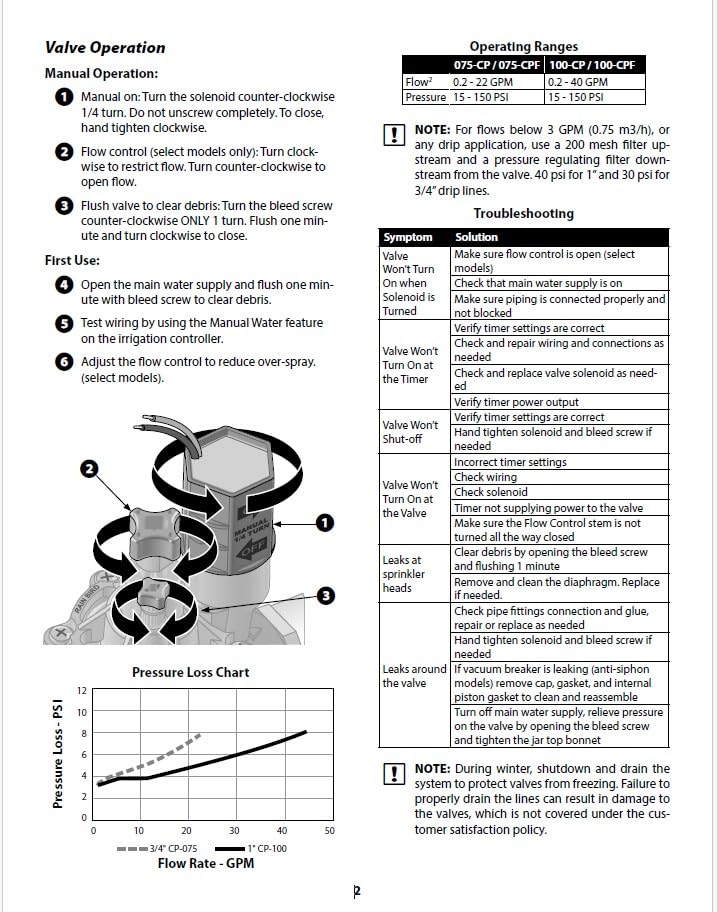

- Below-ground installation keeps the valve out of sight and away from play
- Compatible with any underground irrigation controller brand
- Pressure rating 15–150 psi, 24 VAC, and flow 0.2–30 GPM
- Local codes may require backflow prevention such as a PVB or double-check valve
In real-world use, this valve supports compact layouts in dense landscapes, school campuses with layered irrigation zones, and residential yards where space is at a premium. Its robust materials and responsible design choices help systems operate smoothly through weather changes, soil conditions, and routine maintenance cycles. While performance can vary with overall system design, the HV100FF offers a balanced set of features that align with common irrigation goals: reliability, ease of installation, and long-term durability.
Backflow and codes
When installing underground valves, consult local codes to determine backflow prevention requirements. In many regions, a backflow device such as a PVB or double-check valve is required to protect the potable water supply.
FAQ
Q: What install footprint does the Rain Bird HV100FF valve have?
A: The valve uses a compact 2.54-inch spin radius with 1-inch female threaded inlet/outlet for tighter valve boxes.
Q: Does the HV100FF help prevent flooding if the diaphragm fails?
A: Yes. The reverse-flow design closes the valve to help prevent flooding in such a scenario.
