Description
xOverview

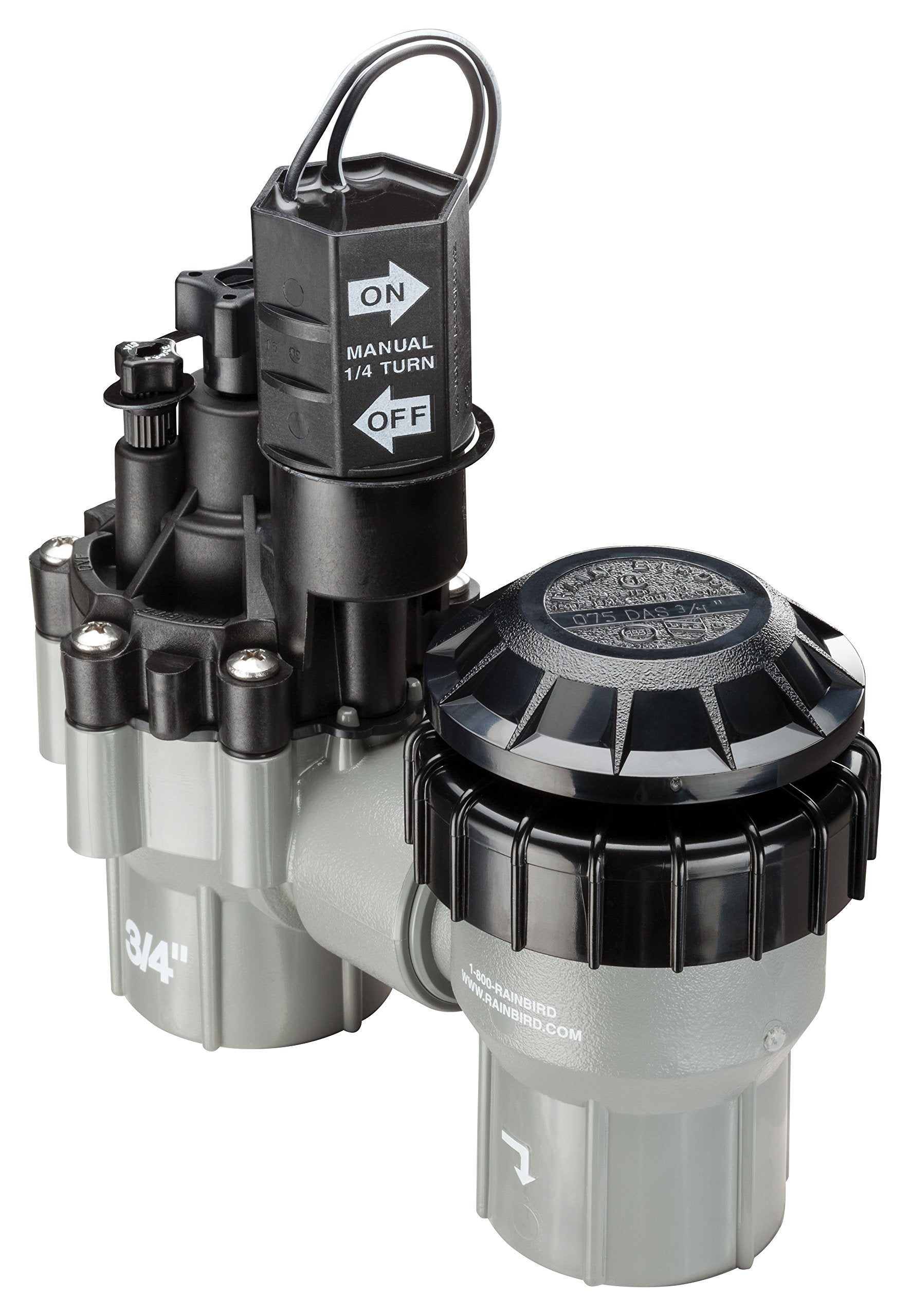

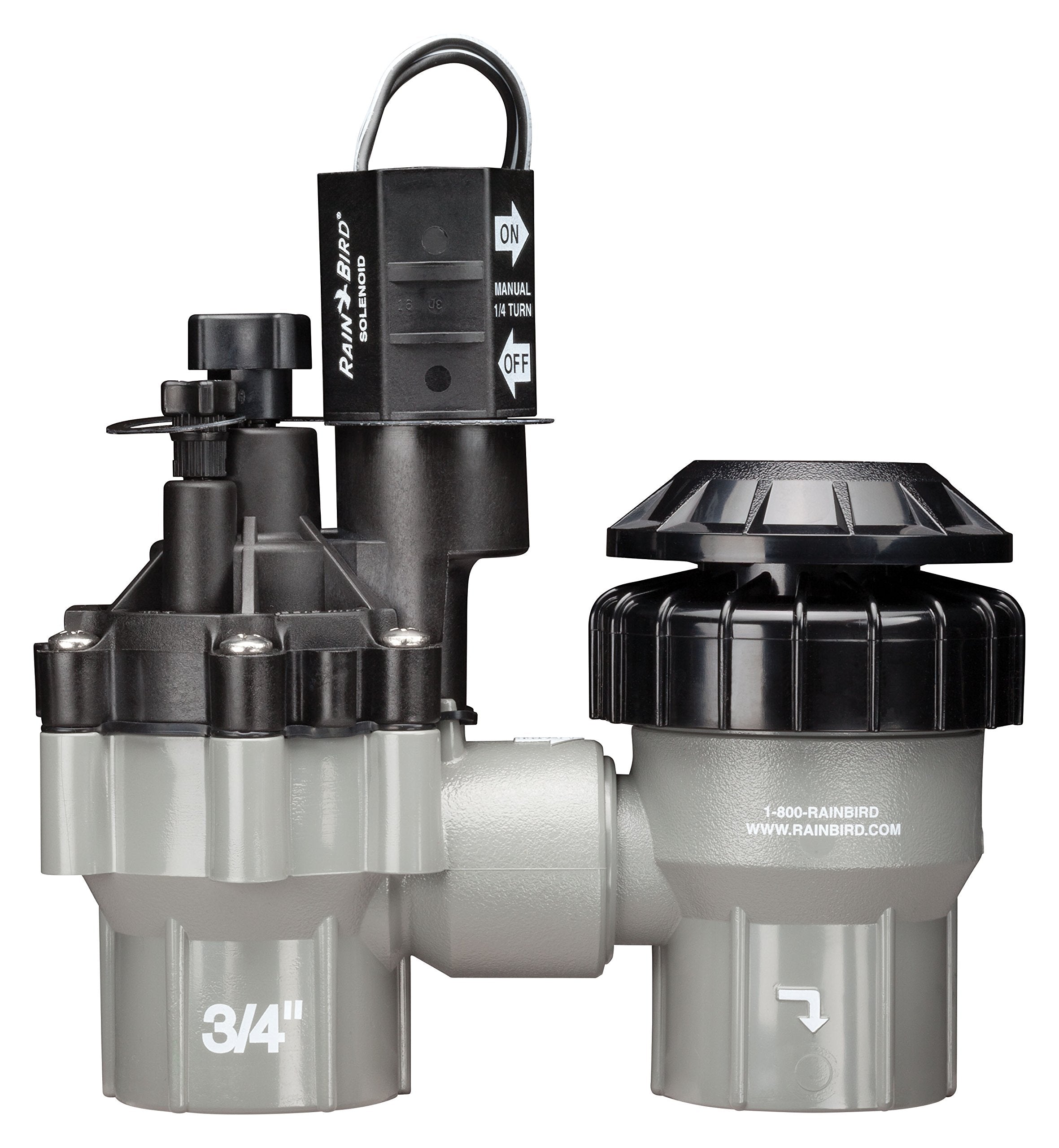

Meet the Rain Bird DASASVF075, a professional grade anti-siphon valve built for above-ground irrigation. Its rugged construction pairs with a reverse-flow design to help guard against backflow and water waste, even if internal components experience pressure fluctuations. A top-mounted flow control knob lets you fine-tune water delivery, supporting uniform coverage across zones without guesswork. Compatible with standard 24 volt irrigation timers, this valve is designed to fit 3/4 inch female threaded inlets and outlets, making replacement straightforward in many existing setups.
Key benefits for your irrigation setup
- Above-ground friendly design with 3/4 inch female threads, compatible with typical 24V timers and controllers.
- Reverse-flow design helps minimize backflow stress on the diaphragm, contributing to dependable operation in varying conditions.
- Manual bleed screw plus automatic operation provide flexible testing and seasonal startup options.

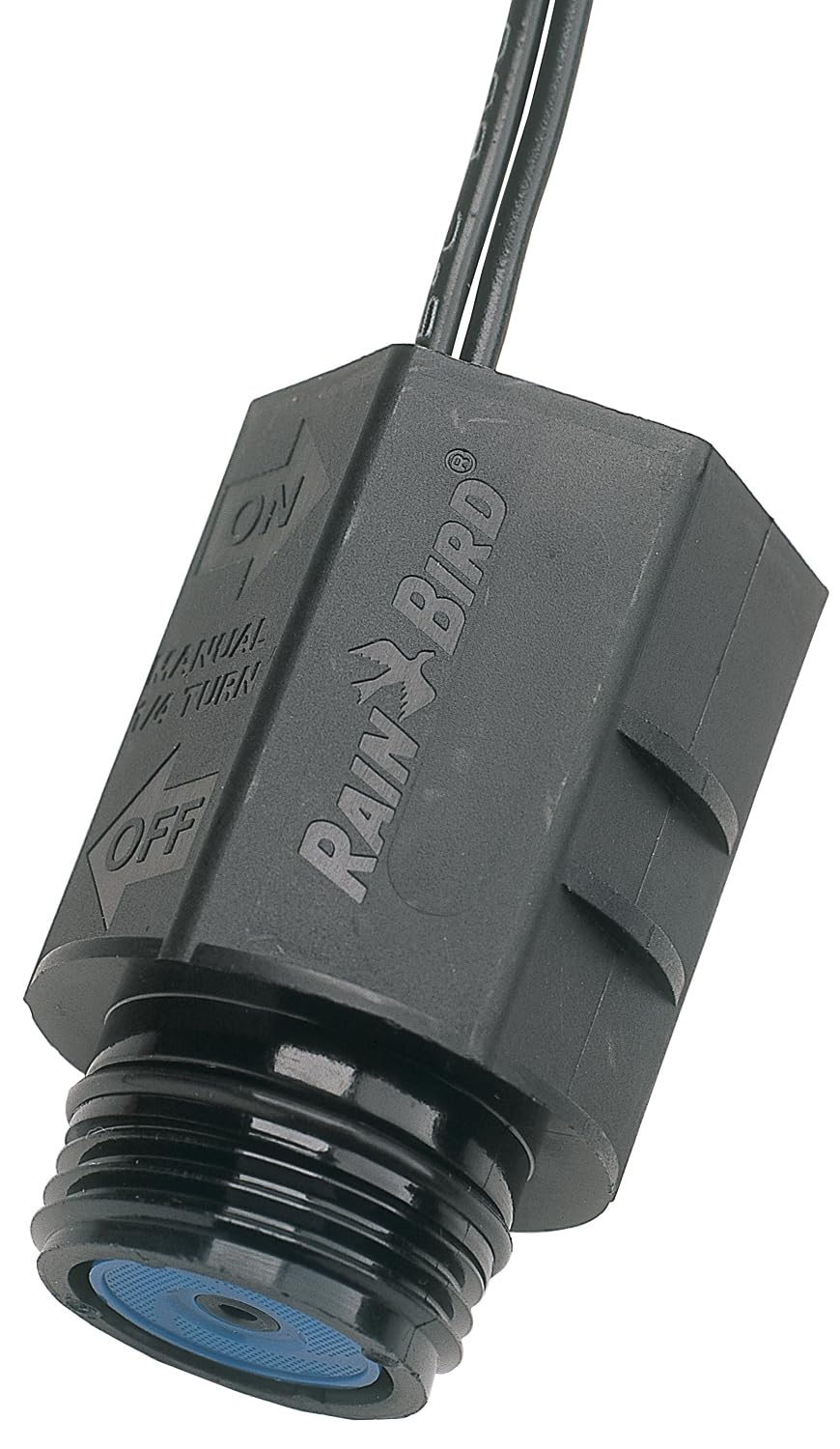

- Energy-efficient, low-power solenoid with a captured plunger supports long-lasting durability in harsh water environments.

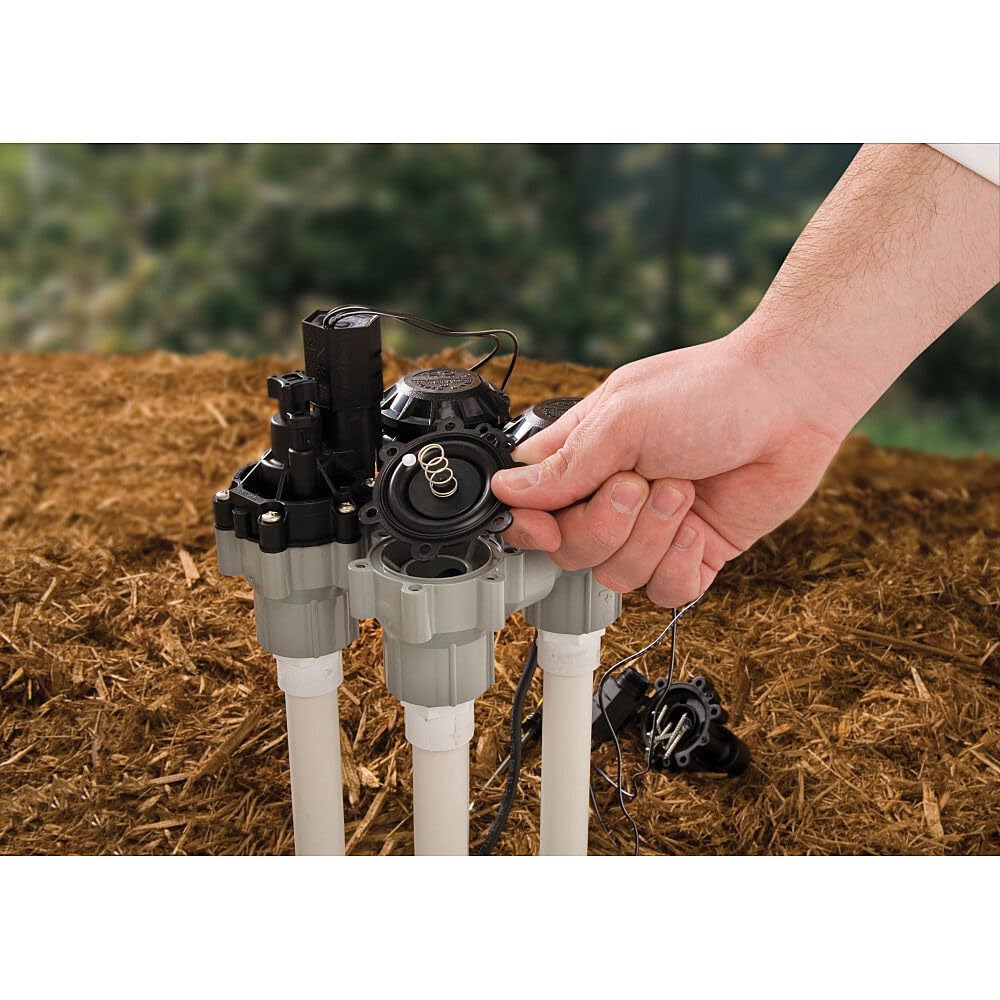

- Buna-N diaphragm with an integrated water filter stands up to aggressive water quality while preserving performance.
- Flow range from 0.2 to 22 GPM; for very low flows or drip-driven setups, add a 200 mesh filter before the valve.
Installation and compatibility

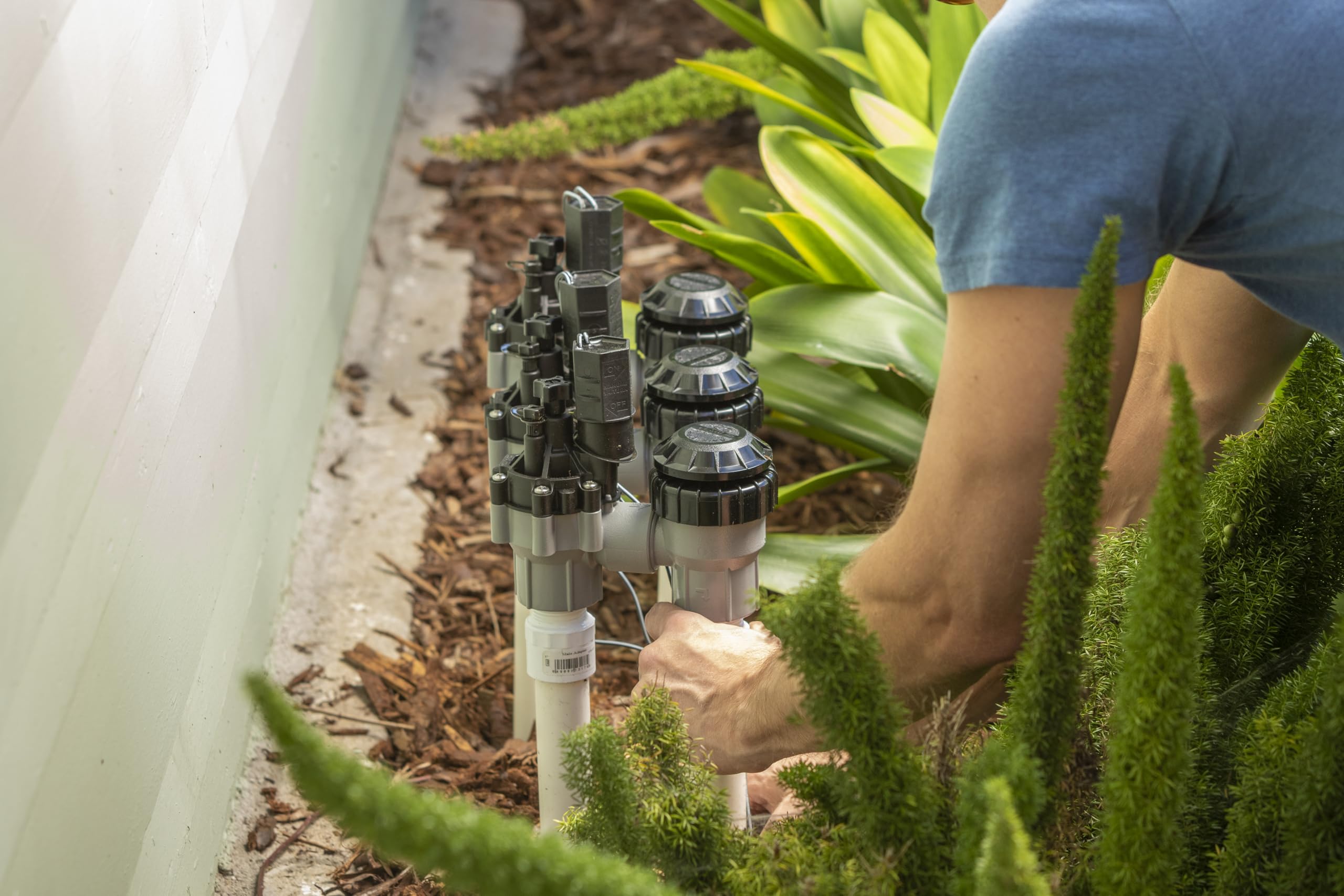

Designed for above-ground installation, the DASASVF075 should be mounted at least 6 inches above the highest sprinkler head on the line to help prevent backflow. It works with any 24 VAC irrigation timer or controller, simplifying integration into existing systems.
Before first startup and after installation, manually flush the system using the external bleed screw to remove dirt and debris. The valve operates within a working pressure range of 15 to 150 psi and carries listings that support safe, consistent irrigation performance.
Quality and standards

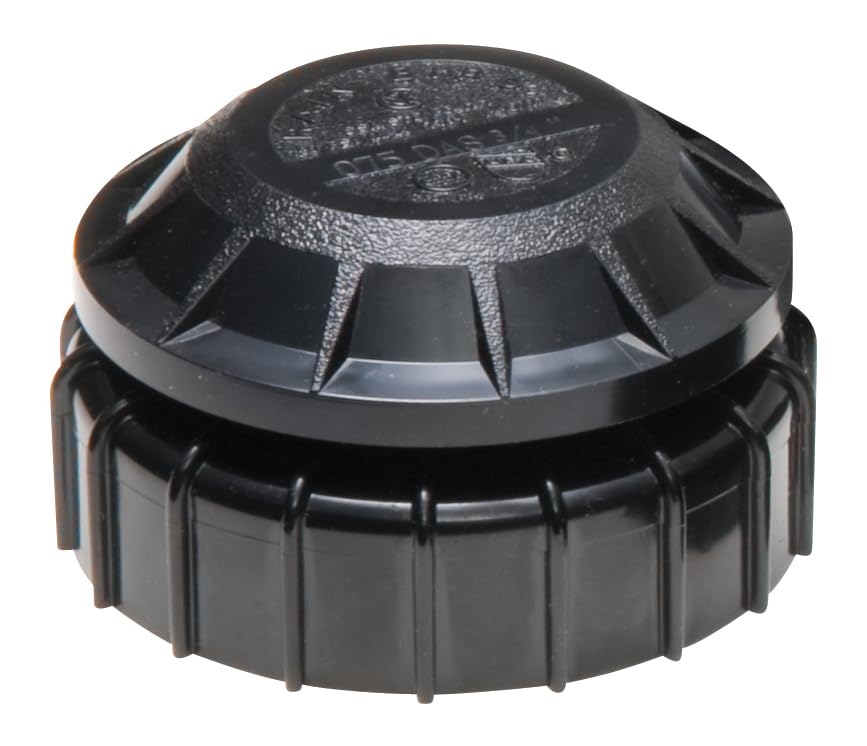

Rain Bird combines heavy-duty construction with reliable components, including stainless-steel screws and a Buna-N diaphragm. The integrated vacuum breaker with bleed screw enables both automatic and manual operation, delivering consistent performance across residential and commercial settings.
Why homeowners and professionals choose Rain Bird
With decades of irrigation experience behind it, the DASASVF075 aims to deliver precise zone control while minimizing water waste. Real-world use often centers on adjusting flow for even coverage, reducing misting, and ensuring reliable shutoff in case of diaphragm stress. This valve is a practical upgrade for people who want solid, field-proven hardware that works with standard irrigation gear without forcing drastic changes to existing layouts.
FAQ
Q: What flow range does the Rain Bird DASASVF075 support?
A: It operates from 0.2 to 22 GPM with a 15 to 150 psi working range.
Q: How should I install and start using this valve?
A: Mount above ground at least 6 inches above the highest head; flush debris before startup.
