Description
xOverview

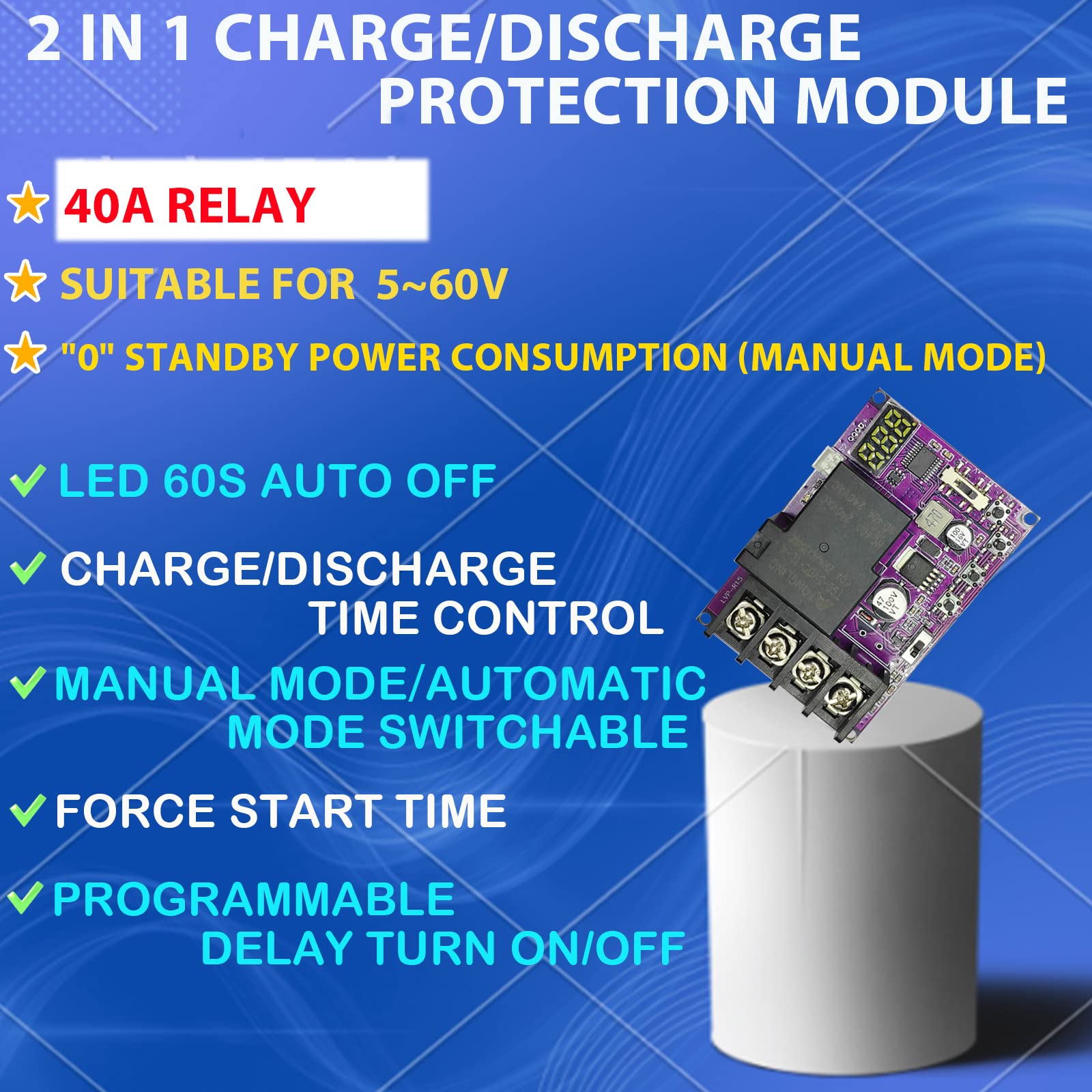

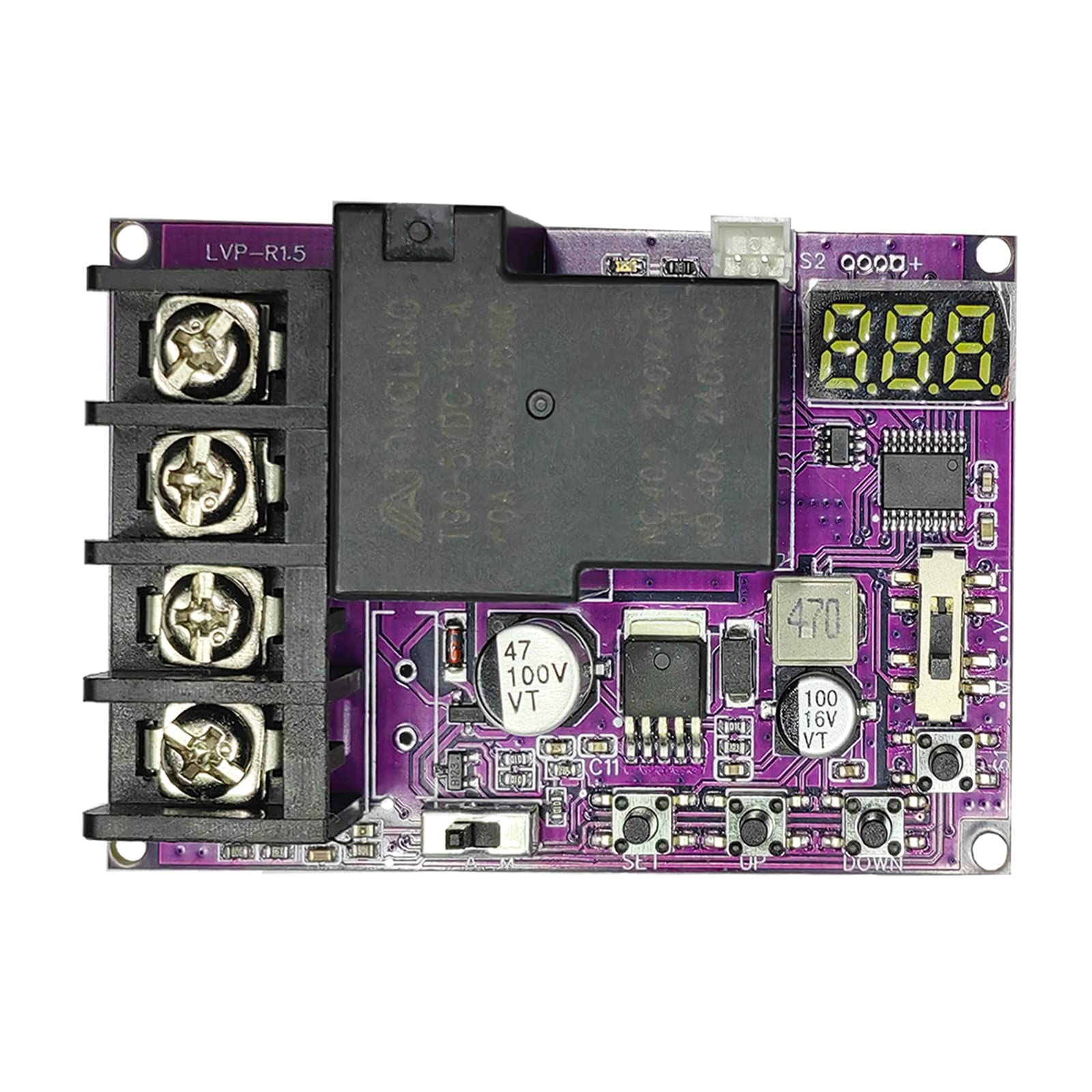

The MgcSTEM Low Voltage Disconnect and Charging Discharging Protection 2-in-1 module delivers reliable battery protection for DC systems from 5V to 60V, with a robust 40A current rating. An integrated LCD display keeps essential readings in view, helping you monitor voltage, mode, and timing at a glance in any setting—from home workshops to off-grid cabins.
Two protection modes for versatile use

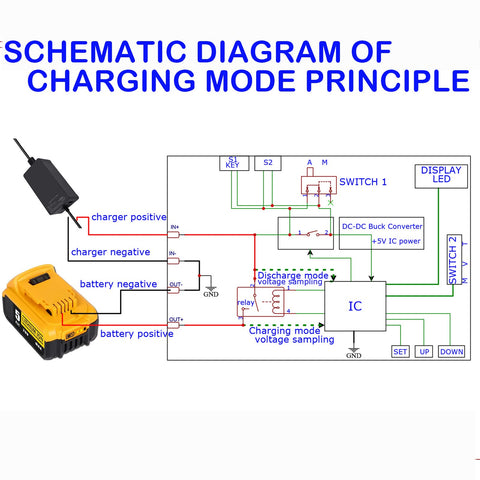

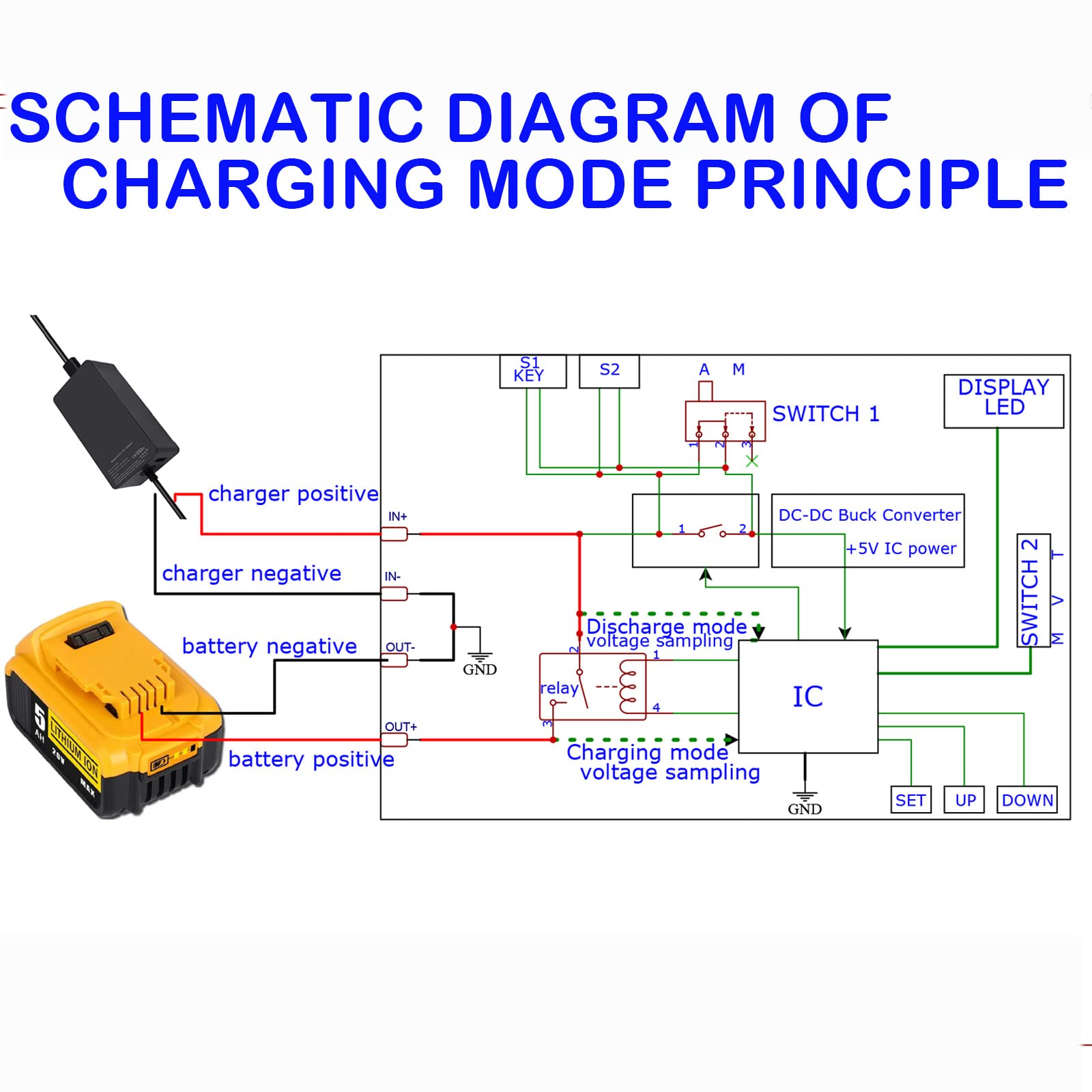

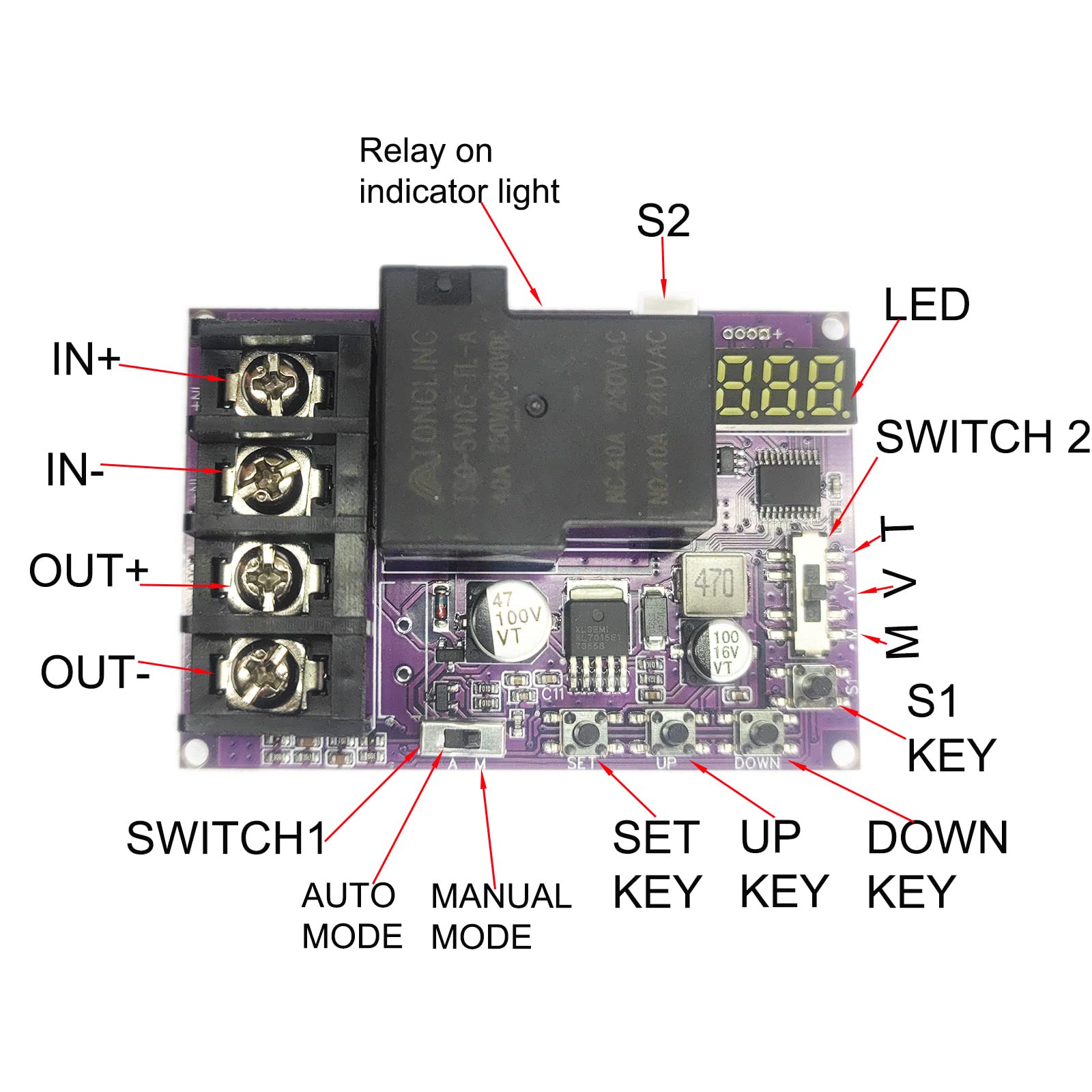

- Charging mode: designed for charging scenarios (including solar charging). The unit automatically disconnects the battery when the preset voltage is reached, helping prevent overcharge.

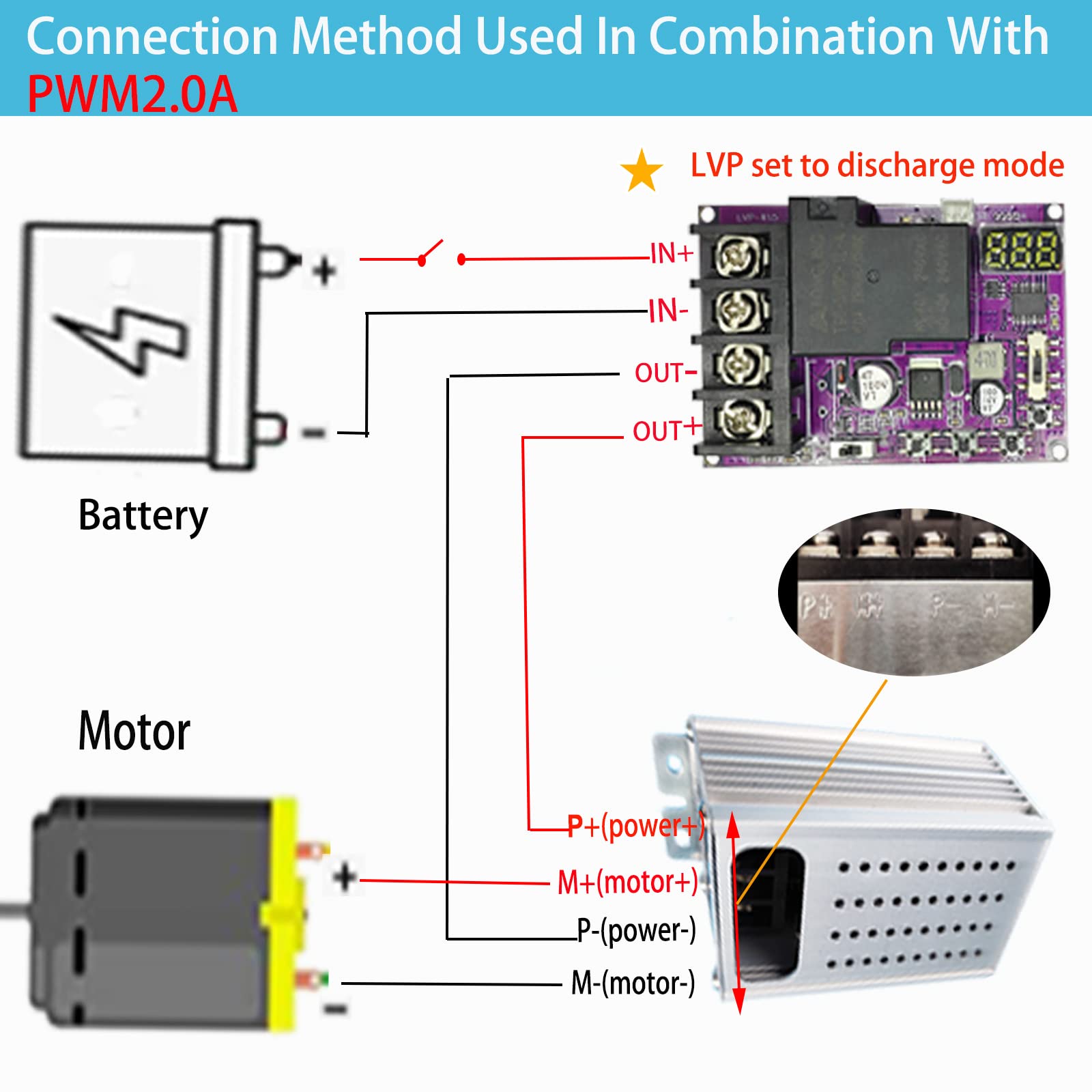

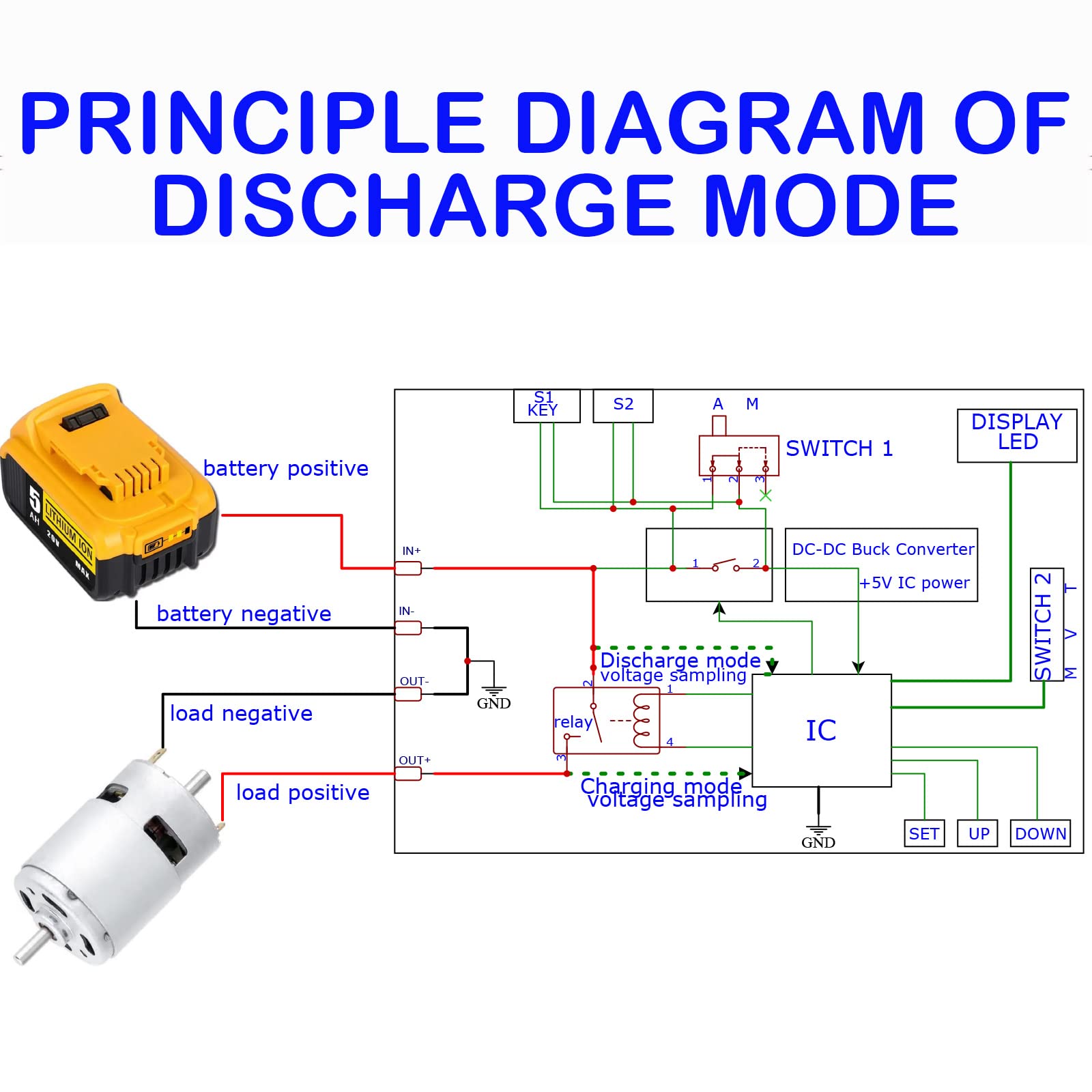

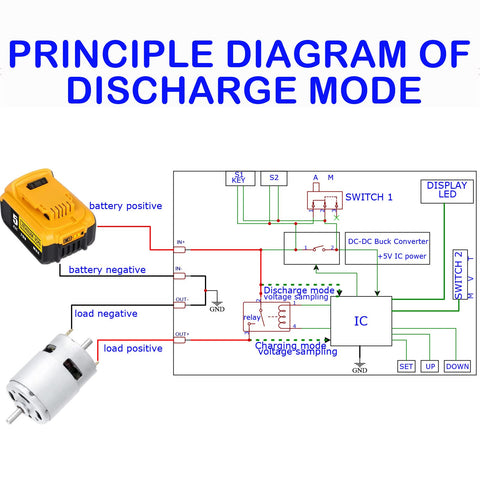

- Discharging mode: protects against deep discharge by cutting off when the battery voltage drops too low. These modes can be used independently or together to suit your system.
Flexible operation and power management

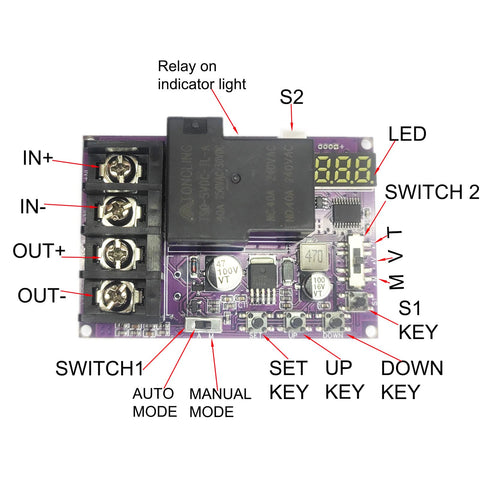

- Automatic mode: after disconnection, the relay enters a low-power state; the LED turns off after 60 seconds of inactivity and reactivates when a button is pressed. Standby current is 5mA at 18V, and the unit automatically restarts when voltage returns.
- Manual mode: once the relay disconnects, a manual reset is required to re-enable the circuit. This provides deliberate control in sensitive installations.
Memory, timing, and durability
- Internal flash storage: all settings are stored so they can be restored after a power loss, minimizing reconfiguration time.
- Timers and delays: supports a 99-second start delay, 99-second disconnect delay, and a 99:59:59 hours timer for disconnect events.
Practical applications
Ideal for solar charging setups, battery banks in remote locations, and equipment that benefits from automatic or manual cutoffs. The wide 5V–60V range covers a variety of battery chemistries, while the 40A rating provides robust protection for everyday DC systems. Use cases include small solar arrays, backup power kits, and hobbyist projects where you want clear, programmable protection without complicating your wiring.
FAQ
Q: What does the 2-in-1 charging and discharging protection do?
A: It provides charge cutoff and discharge cutoff to guard against overcharging and deep discharge, useful for solar charging and remote systems.
Q: Can I customize delays and recover settings after power loss?
A: Yes. You can set start and disconnect delays up to 99 seconds and a 99:59:59 timer; settings restore automatically after power loss.
