Description
xOverview
The HCDC AC120V 15A Automatic Transfer Switch (ATS) delivers a fast, automatic handoff between two AC sources. Designed for AC INPUT 2 from utility or shore power and AC INPUT 1 from inverter or generator, it ensures the load naturally follows the most reliable power source. When INPUT 2 is live, the load draws from INPUT 2; if INPUT 2 falls away, the load automatically shifts to INPUT 1. This seamless switchover happens in a fraction of a second, helping to minimize interruptions for connected devices.
Key specifications
- Operating voltage range: 90 to 135V at 50/60 Hz, with a maximum current of 15 A.
- Transfer time under 30 ms, fast enough for many smart devices and computers.

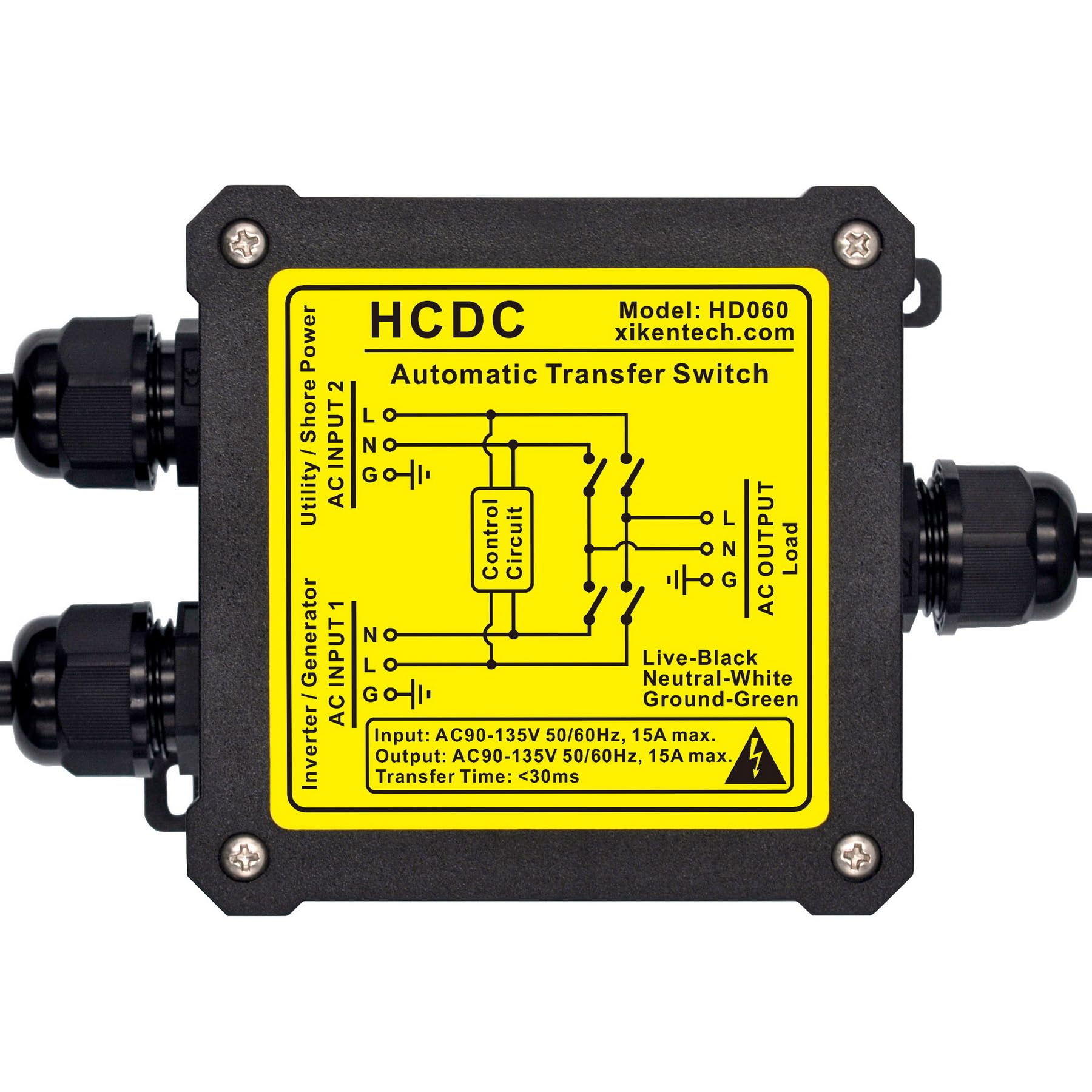

- Internal four high power SPST relays switch simultaneously to reduce arcing while keeping live and neutral isolated from the switching action.

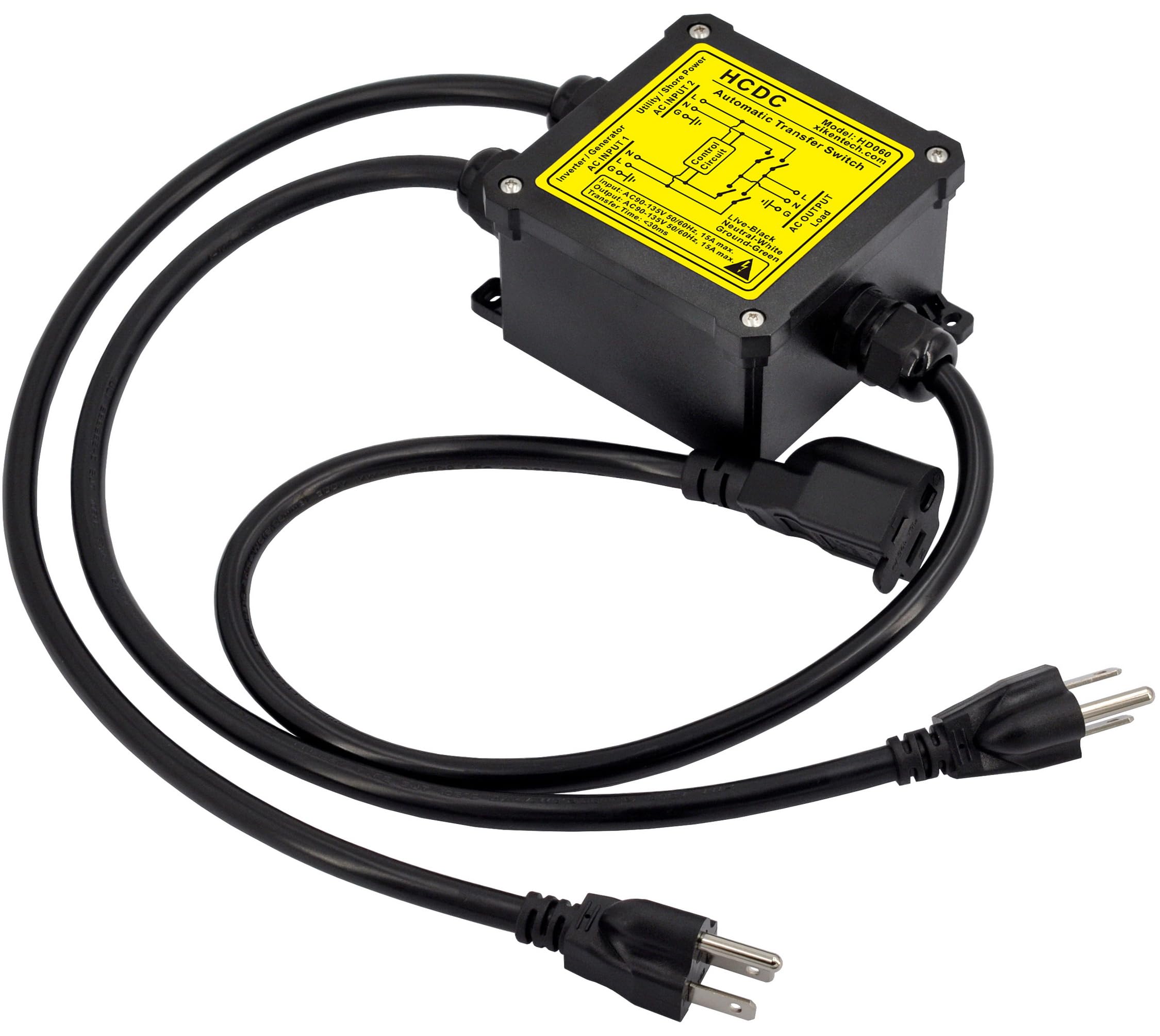

- IP68 rated polycarbonate enclosure with silicone seals and 304 stainless steel hardware, allowing indoor or outdoor use.

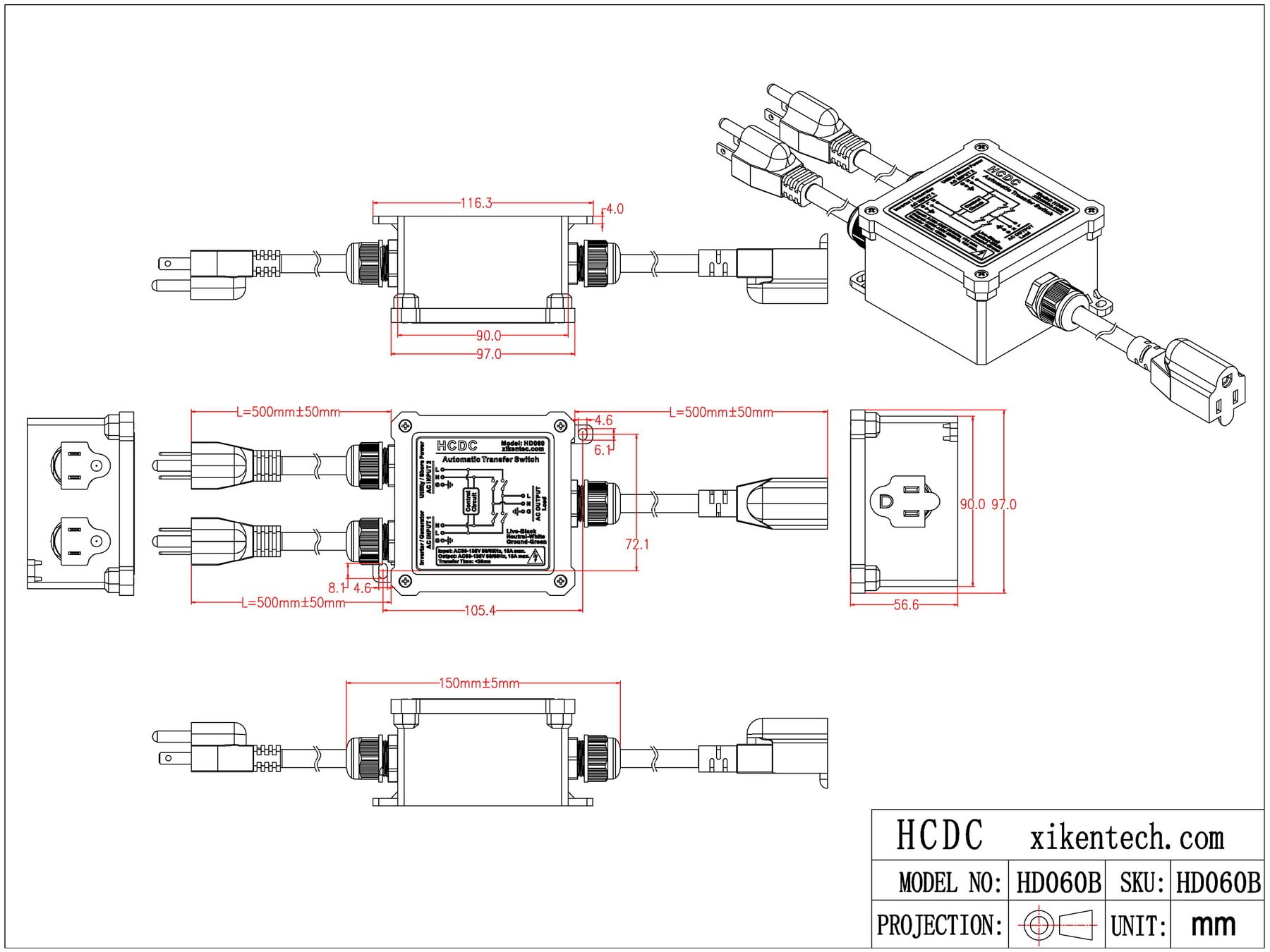

- Cable lengths: INPUT 1 0.5 m, INPUT 2 and OUTPUT each 0.5 m; 14 AWG conductors for solid connections.
Design and durability
The unit combines a rugged, flame retardant V1 rated enclosure with a compact inline form factor. The design pairs a sealed exterior with a reliable internal switching network, creating a resilient solution for environments where weather or outdoor exposure is a consideration. The grounding scheme is designed to remain stable while the power sources switch, contributing to safer operation.
Usage scenarios
- Backup power for home offices or network gear where uptime matters, with a smooth transfer between shore power and inverter or generator.
- Outdoor installations for cabins, RV hookups, or remote workstations that rely on varied power sources.
- Systems that require a compact, inline transfer relay to manage two AC inputs without complex rewiring.
What you get and installation notes

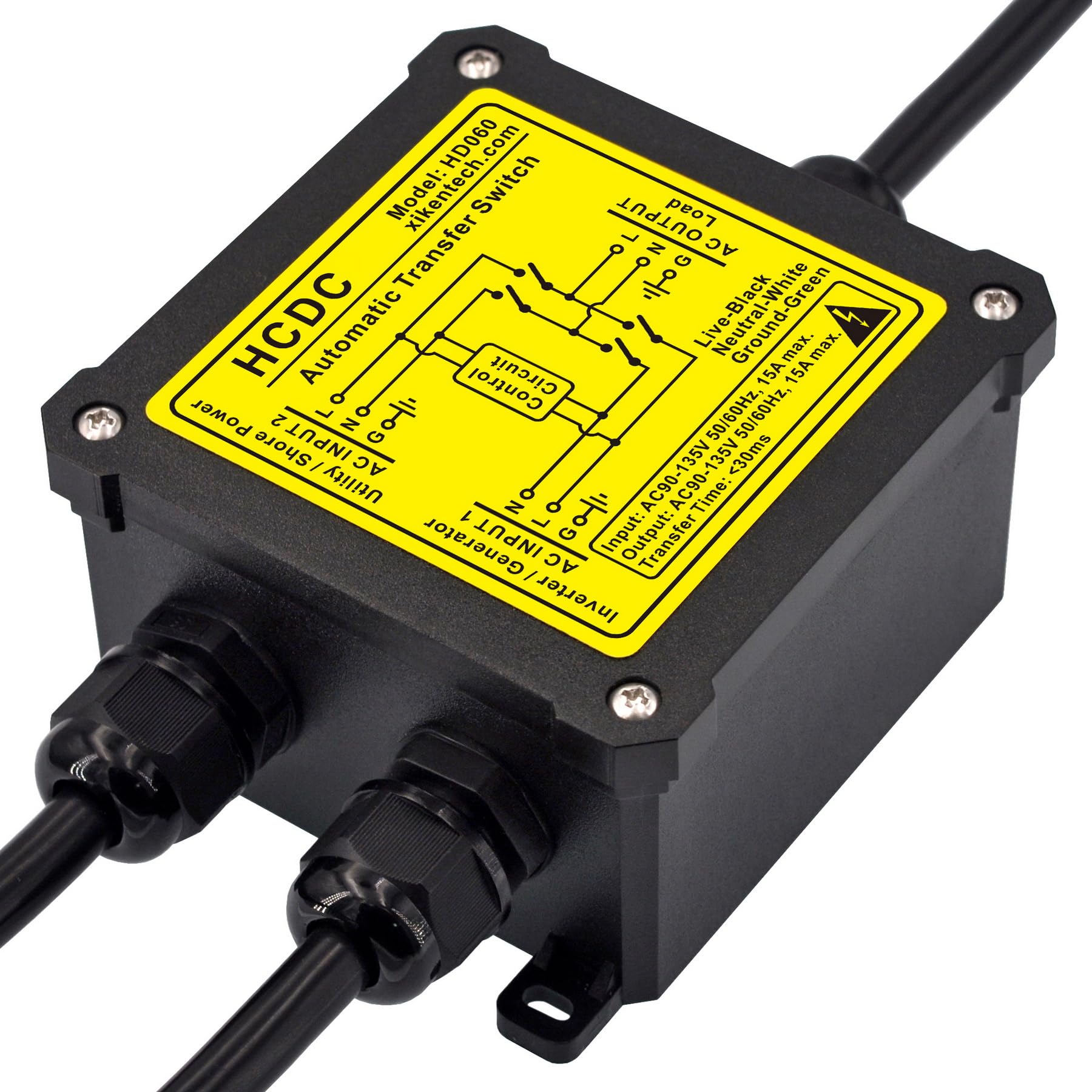

- Inline transfer switch with pre-wired cables for INPUT 1, INPUT 2, and OUTPUT each at 0.5 m (19 in).
- NEMA 5-15P plug on INPUT 1, with standard 3-prong configuration for easy integration.
- Mounting hardware and sealed construction designed for straightforward installation and durable operation.
Why consider this ATS
With a fast transfer time, robust enclosure, and purpose-built wiring, this ATS offers a practical path to better power-aware setups. It presents a flexible option for managing two AC sources while staying mindful of safety, durability, and ease of use. While performance will vary with your specific devices and power conditions, the design emphasizes reliable operation and a clear path to smoother power transitions.
FAQ
Q: What power sources does this ATS switch between?
A: It automatically switches between AC INPUT 2 utility/shore power and AC INPUT 1 inverter or generator to keep loads powered.
Q: Is the enclosure suitable for outdoor installation?
A: Yes, the IP68 rated polycarbonate enclosure with silicone seals and stainless hardware is designed for indoor or outdoor use.
