Description

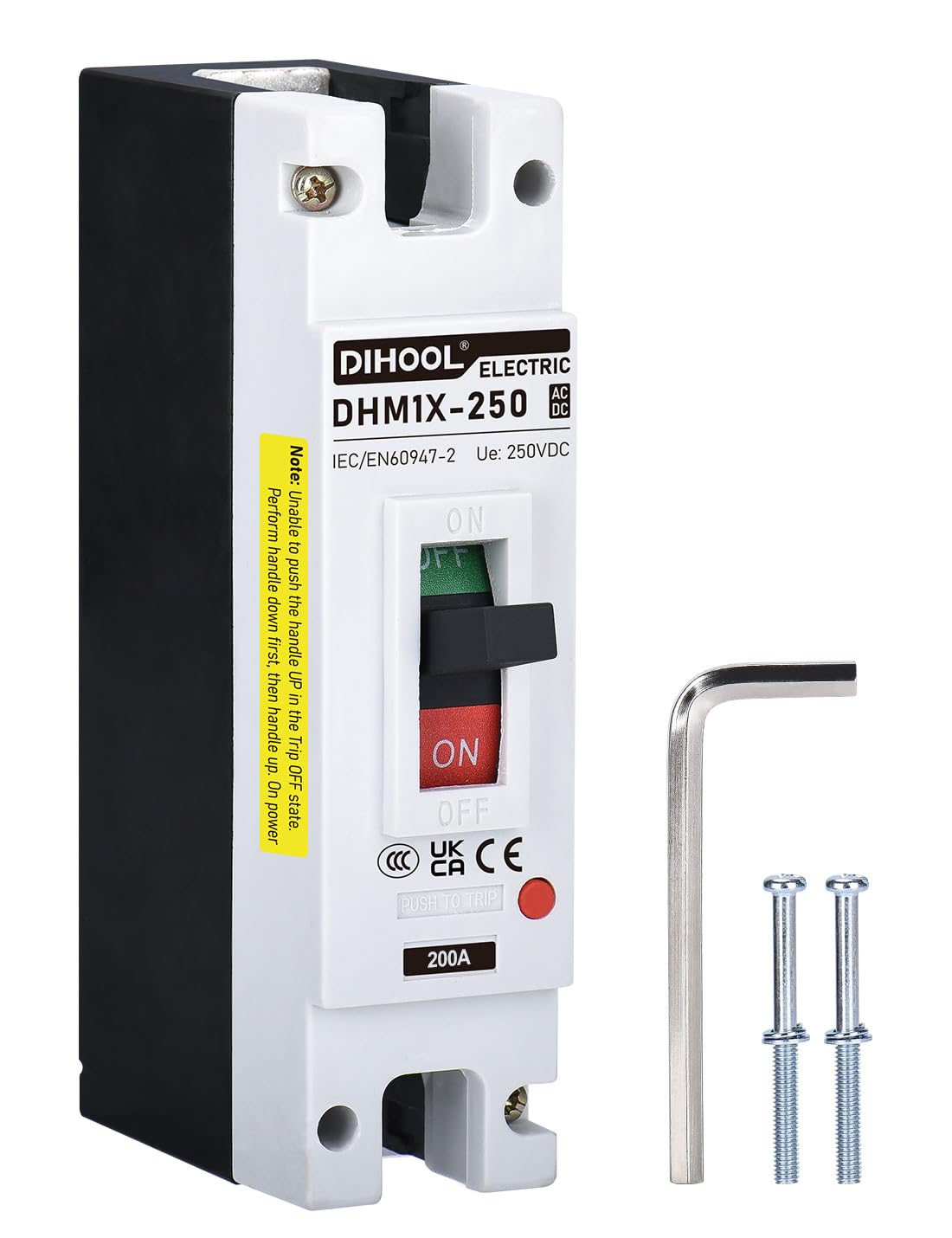

xMeet the DIHOOL 200 Amp DC Breaker, a compact yet capable disconnect switch designed for DC power systems, including solar, UPS, and data centers. Built to respond quickly to overloads and short circuits, this device combines robust protection with straightforward installation.

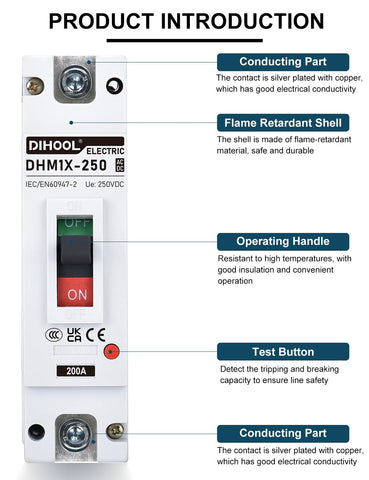

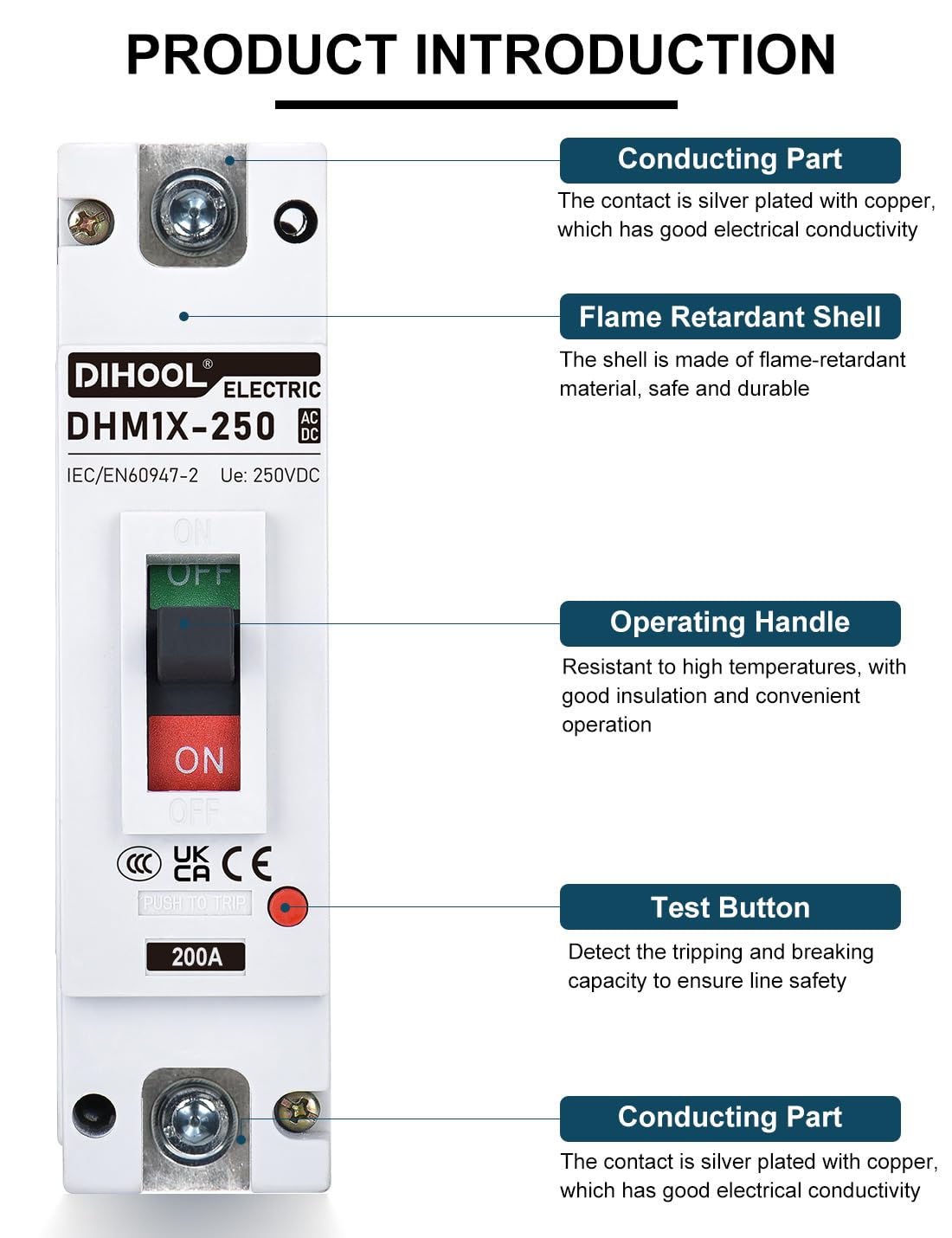

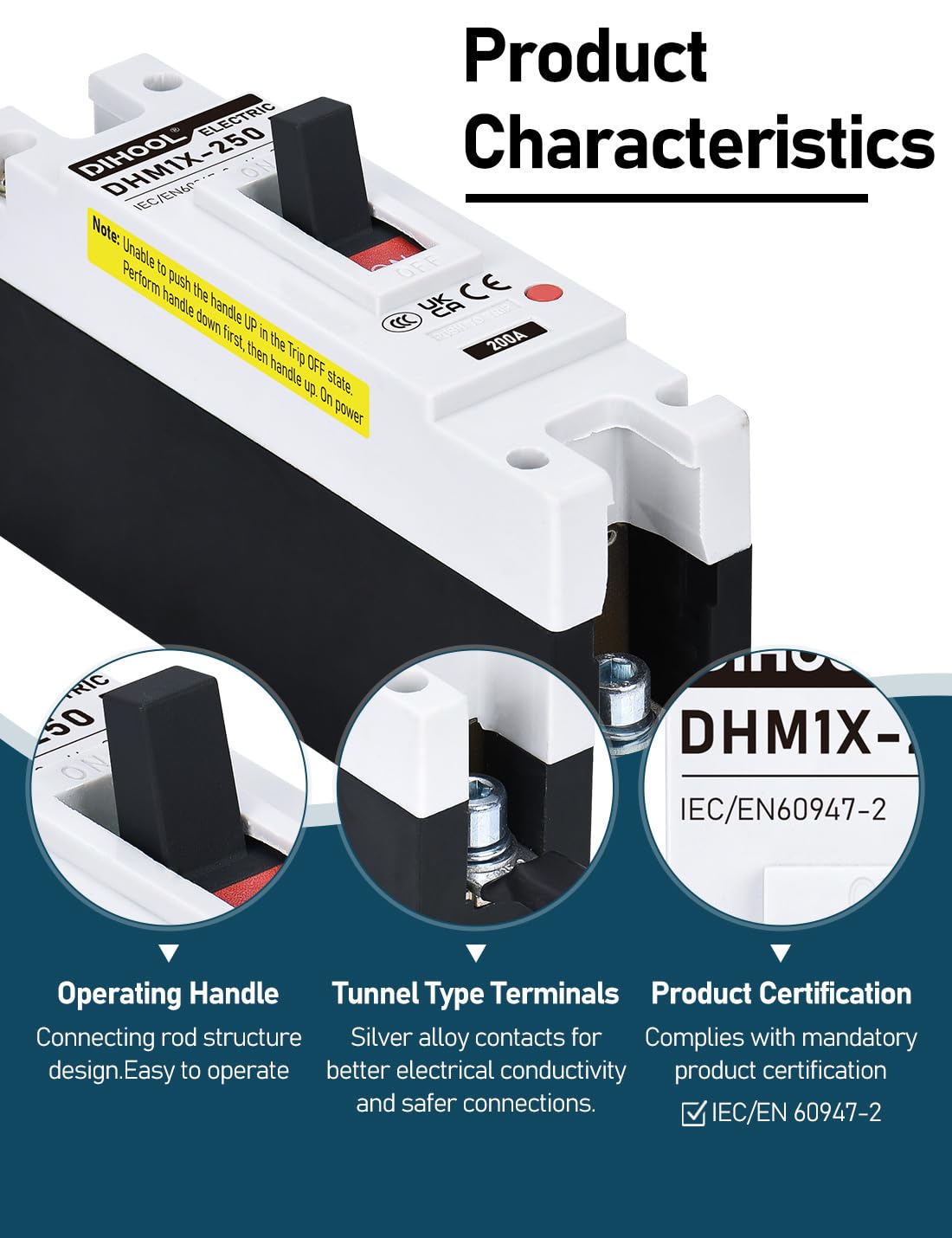

At its core, the breaker uses a thermal magnetic trip that blends fast response with reliable, wear-resistant operation. The contact set uses a substantial 30% silver content on the moving side and 45% on the stationary side, delivering lower contact resistance and durable performance across many cycles.

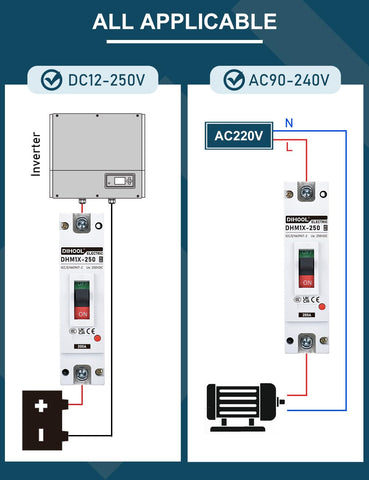

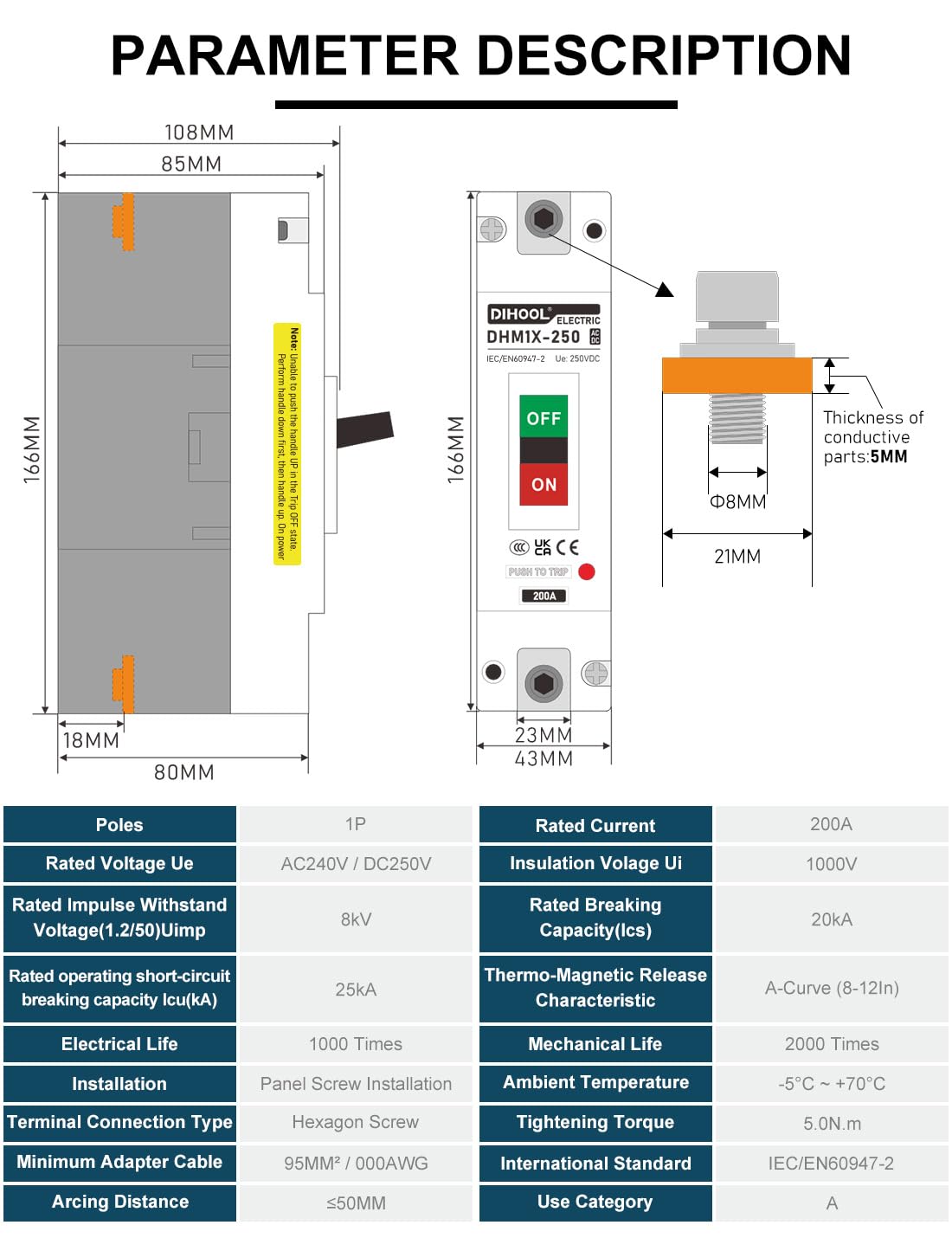

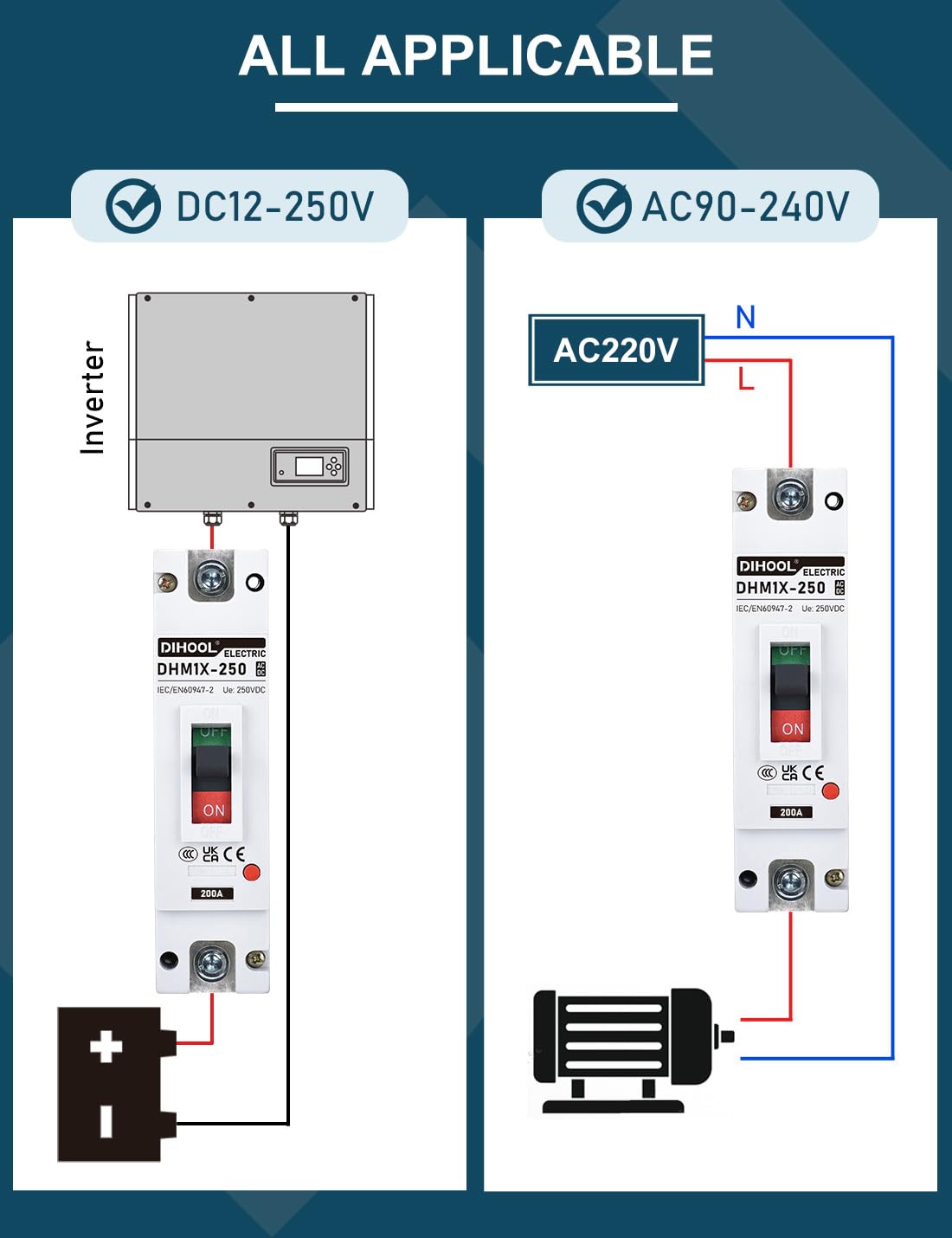

Its wide working voltage span covers DC from 12V to 250V and AC from 90V to 240V, making it versatile for varied installations. The short-circuit breaking capacity is rated up to 25 kA, offering a measure of protection against severe faults. The physical size is 164 mm by 43 mm by 108 mm, designed for panel mounting via screws, keeping the installation tidy and accessible.
Practical benefits
With isolation capability and circuit protection, it supports main power distribution, PV array safety, UPS isolation, and battery system safety. It helps prevent unintended outages by interrupting power in fault conditions while staying within a compact footprint.
Key specs
- Working voltage: DC 12V–250V, AC 90–240V
- Current rating: 200A
- Short-circuit breaking capacity: 25 kA
- Contact materials: 30% moving silver; 45% stationary silver

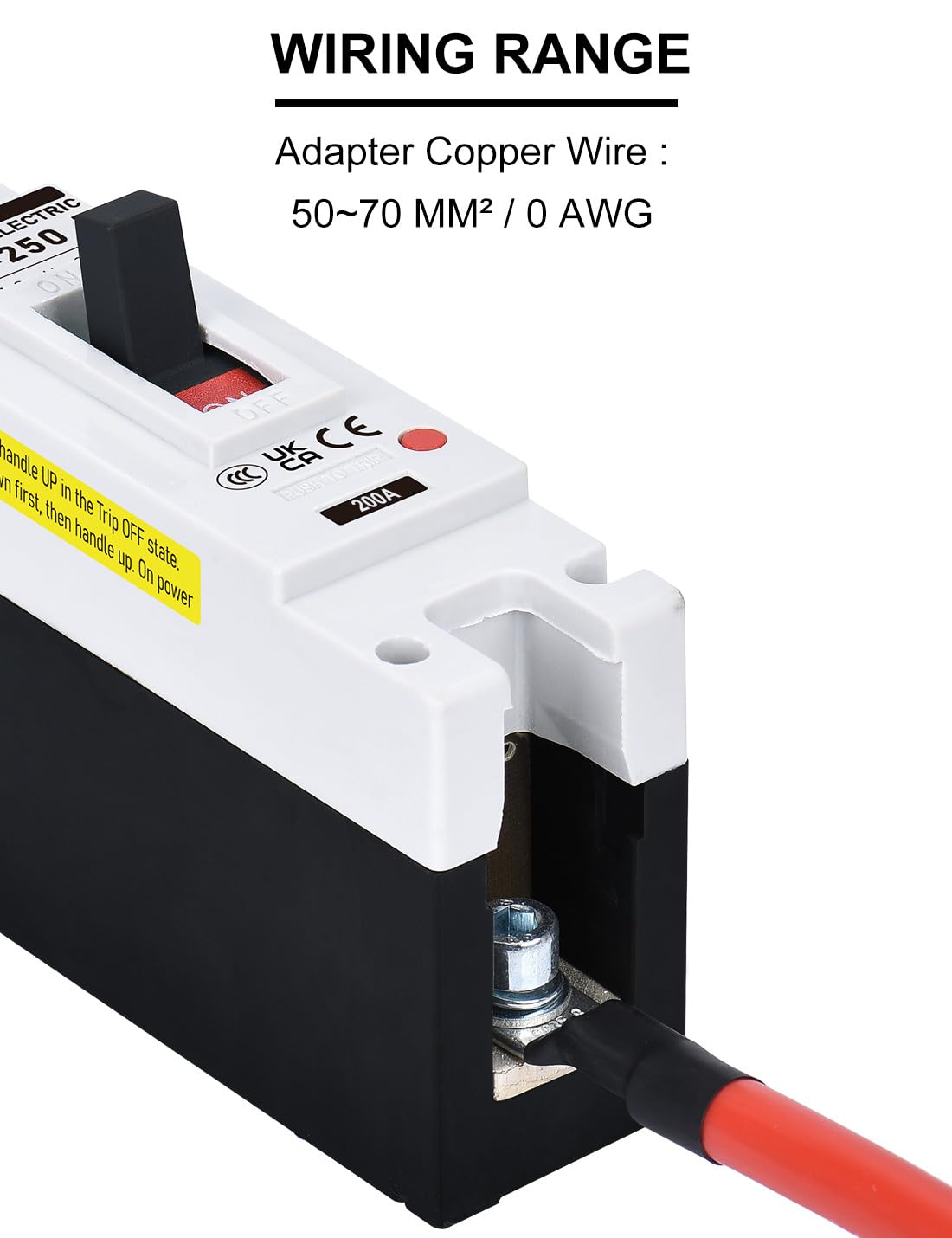

- Mounting: panel screws; size 164 x 43 x 108 mm

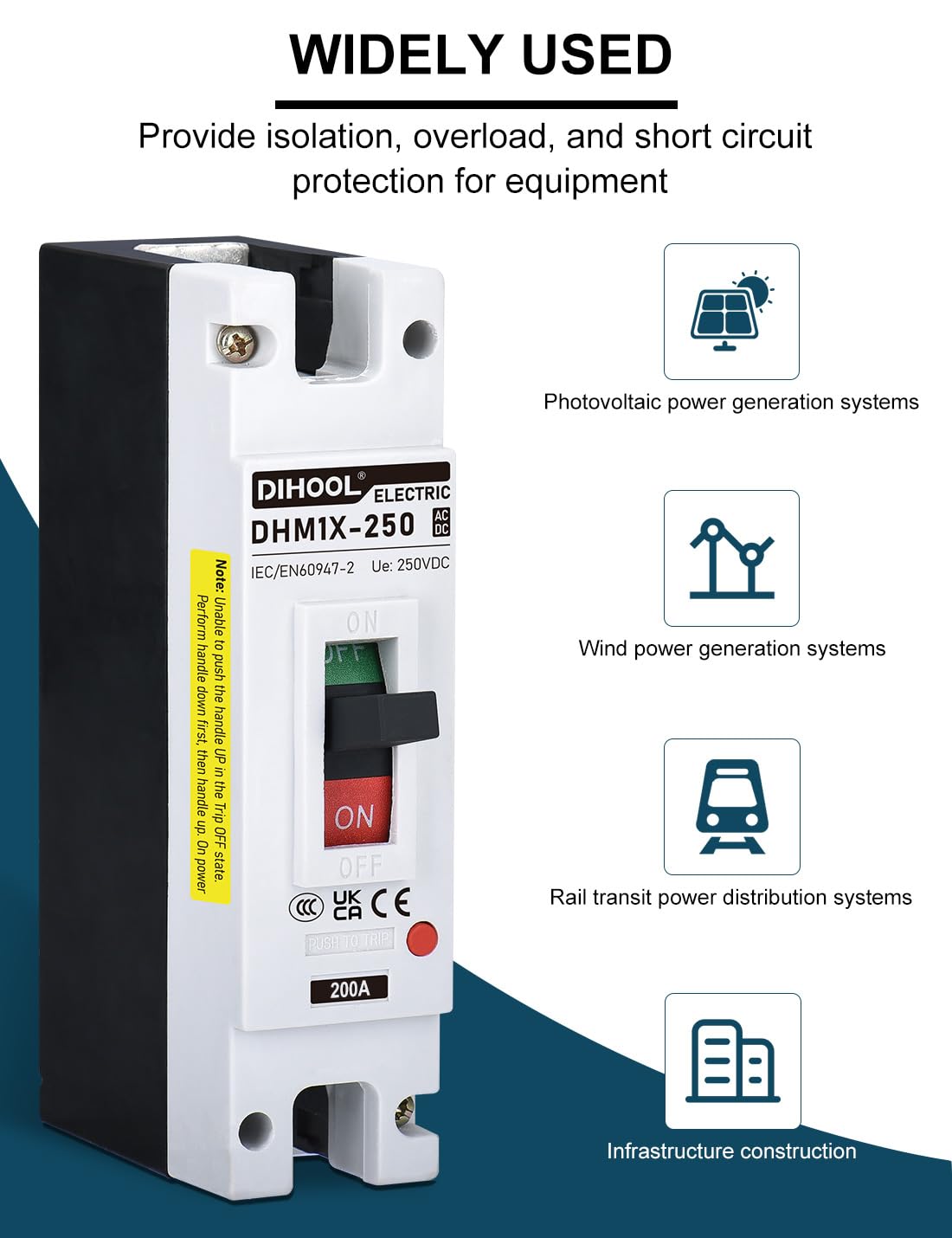

- Applications: DC systems including PV, UPS, battery banks, data centers
Use cases
- Solar power stations or rooftop PV systems needing a reliable main disconnect
- UPS and battery storage cabinets requiring safe isolation
- Data centers and telecom racks with DC power distribution
- Industrial power rooms with solar or battery backups
Note on installation safety and compatibility: review panel fit and ensure appropriate wiring practices. This product is designed for direct DC application and related uses; results may vary with system design.
FAQ
Q: What applications is the DIHOOL 200 Amp DC Breaker best suited for?
A: Best suited for DC systems such as photovoltaic installations, UPS, battery banks, and data centers; designed for panel mounting with screws.
Q: What safety features does the breaker provide?
A: Thermal magnetic trip provides overload and short-circuit protection, rated up to 25 kA for a robust protection option.
