xCZH-LABS LVD Low Voltage Disconnect: Smart Battery Protection
Designed for reliability in off-grid, solar, alarm, and backup systems, the CZH-LABS LVD automatically guards your battery against deep discharge. Operating from DC 6 to 18V with a 30A rating, this compact black ABS panel-mount module blends into control panels while delivering practical protection when power is scarce.
The unit disconnects the load when the voltage falls below a user-defined threshold and reconnects automatically when voltage recovers. This behavior can help reduce stress on electronics during outages and supports a longer usable life for the battery setup. When power is restored, the Smart Switch re-engages the load, keeping systems ready without requiring manual intervention.
Key features and what they mean for your setup
- Operating voltage range: DC 6–18V; current handling up to 30A, suitable for 12V systems.
- Auto disconnect and auto reconnect: protects devices during outages while enabling automatic restoration when conditions improve.

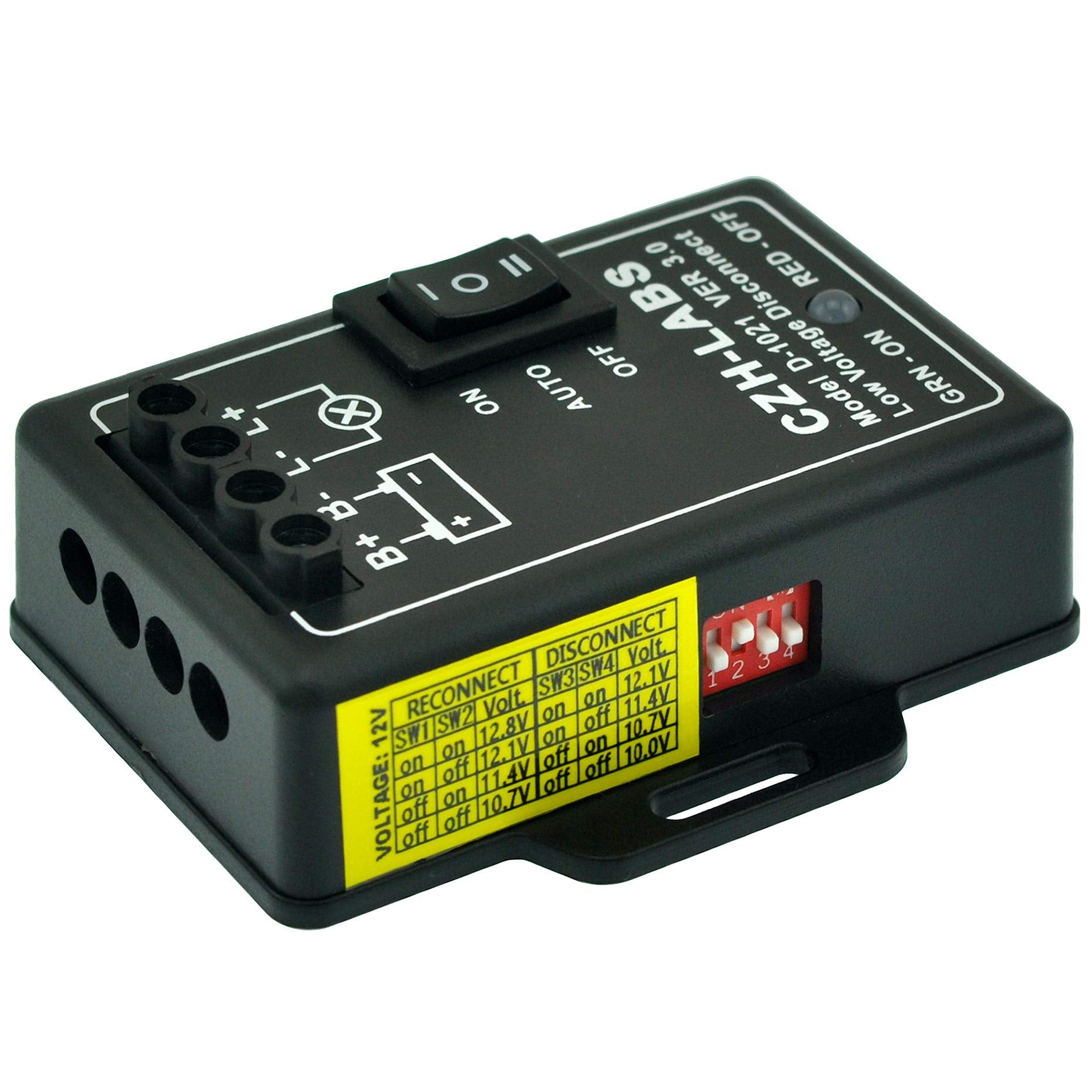

- Programmable Disconnect/Reconnect values: customize thresholds to fit your particular battery and load profile.
- Emergency ON/OFF option: allow an immediate, fixed output if you need a quick override.
How it works in real-world use
- Set the rocker to AUTO and choose a Disconnect Value; if the voltage remains at or below this value for 5 seconds, the load turns OFF.
- When voltage rises to the Reconnect Value and holds for 5 seconds, the load returns to ON.

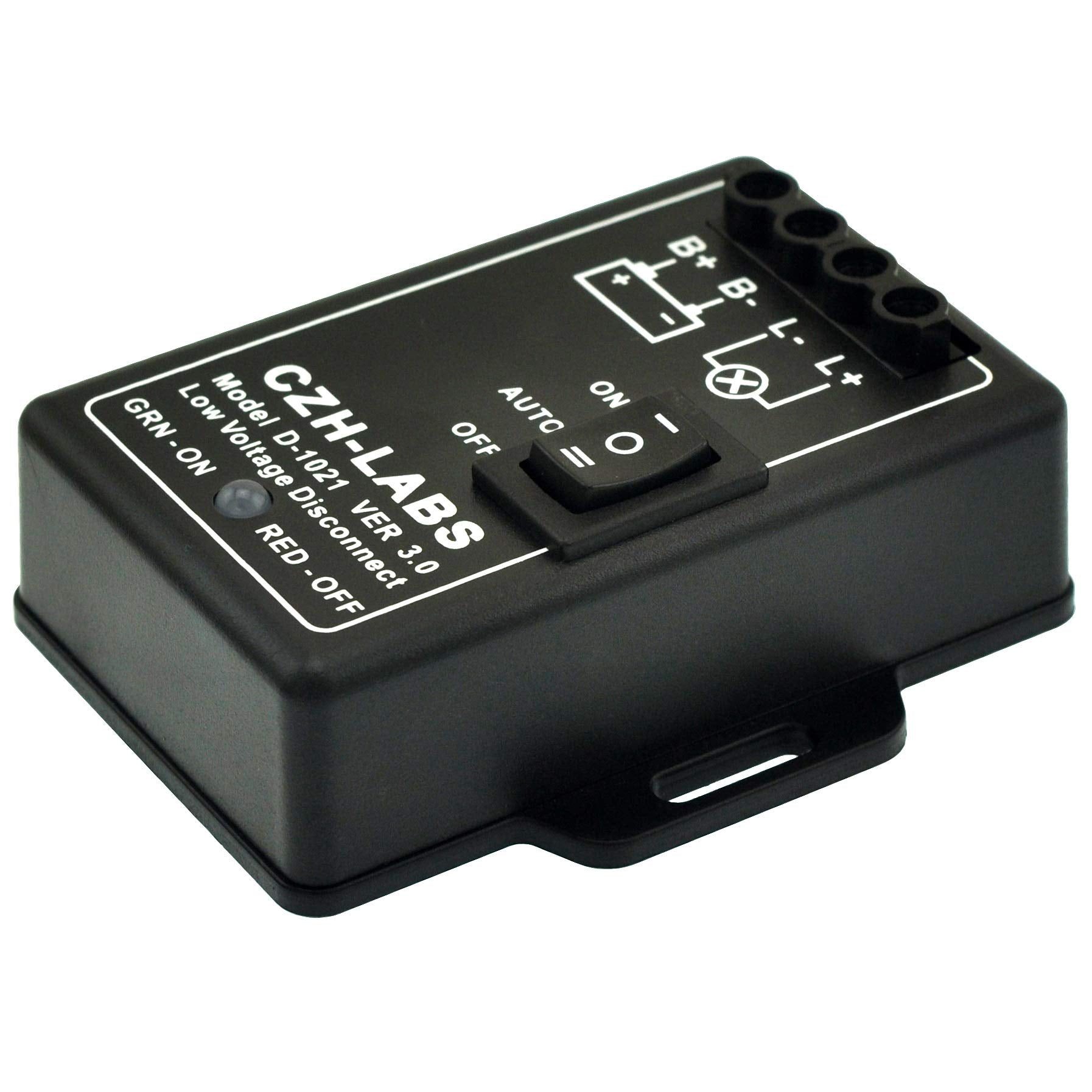

- Green/red dual-color LEDs give at-a-glance status, helping you confirm current mode at a glance.

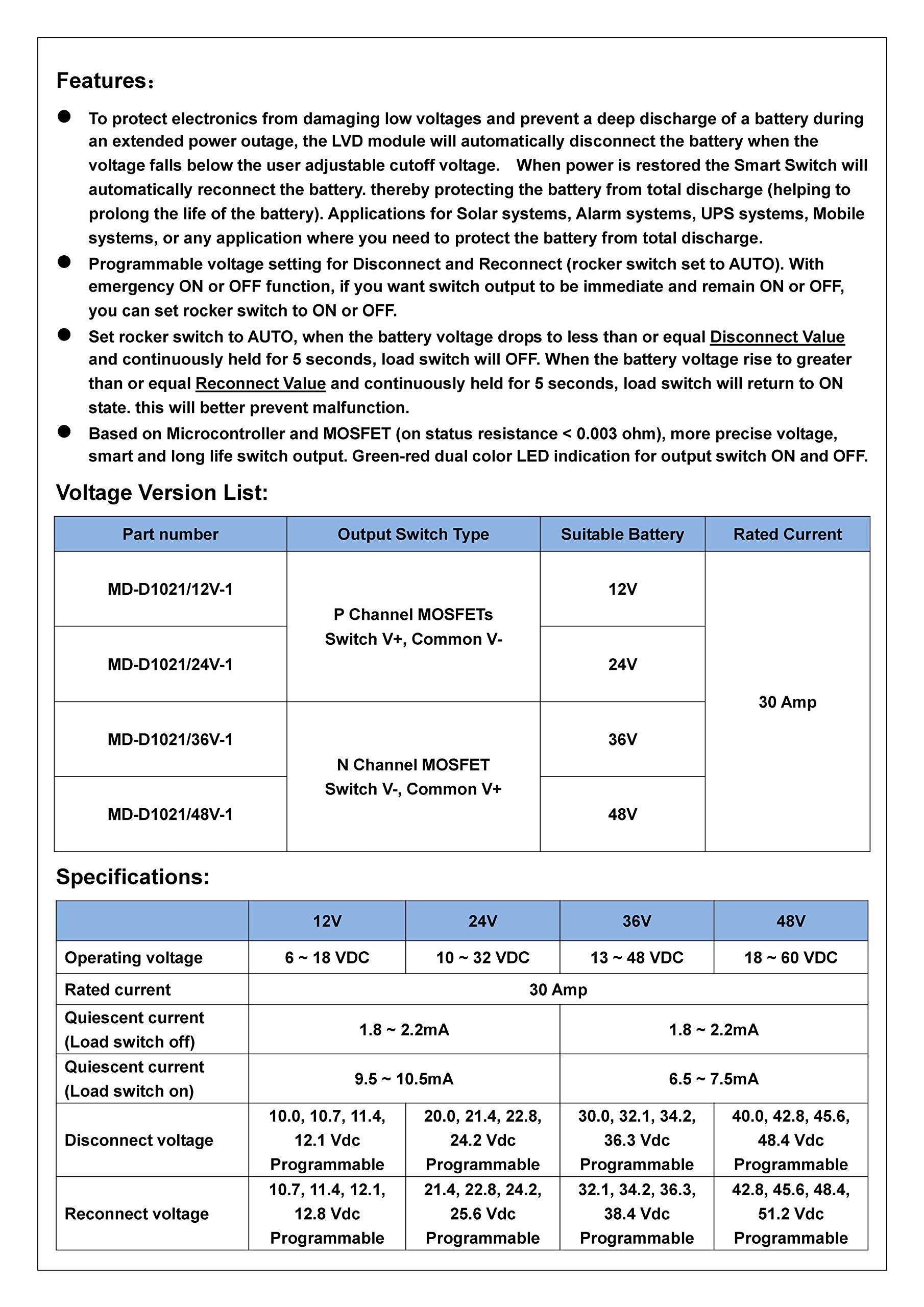

Common applications include solar energy systems, security and alarm networks, uninterruptible power supplies (UPS), and mobile installations where protecting the battery from deep discharge is important. The module relies on a microcontroller and MOSFET with very low on-resistance, enabling precise switching and a long service life.

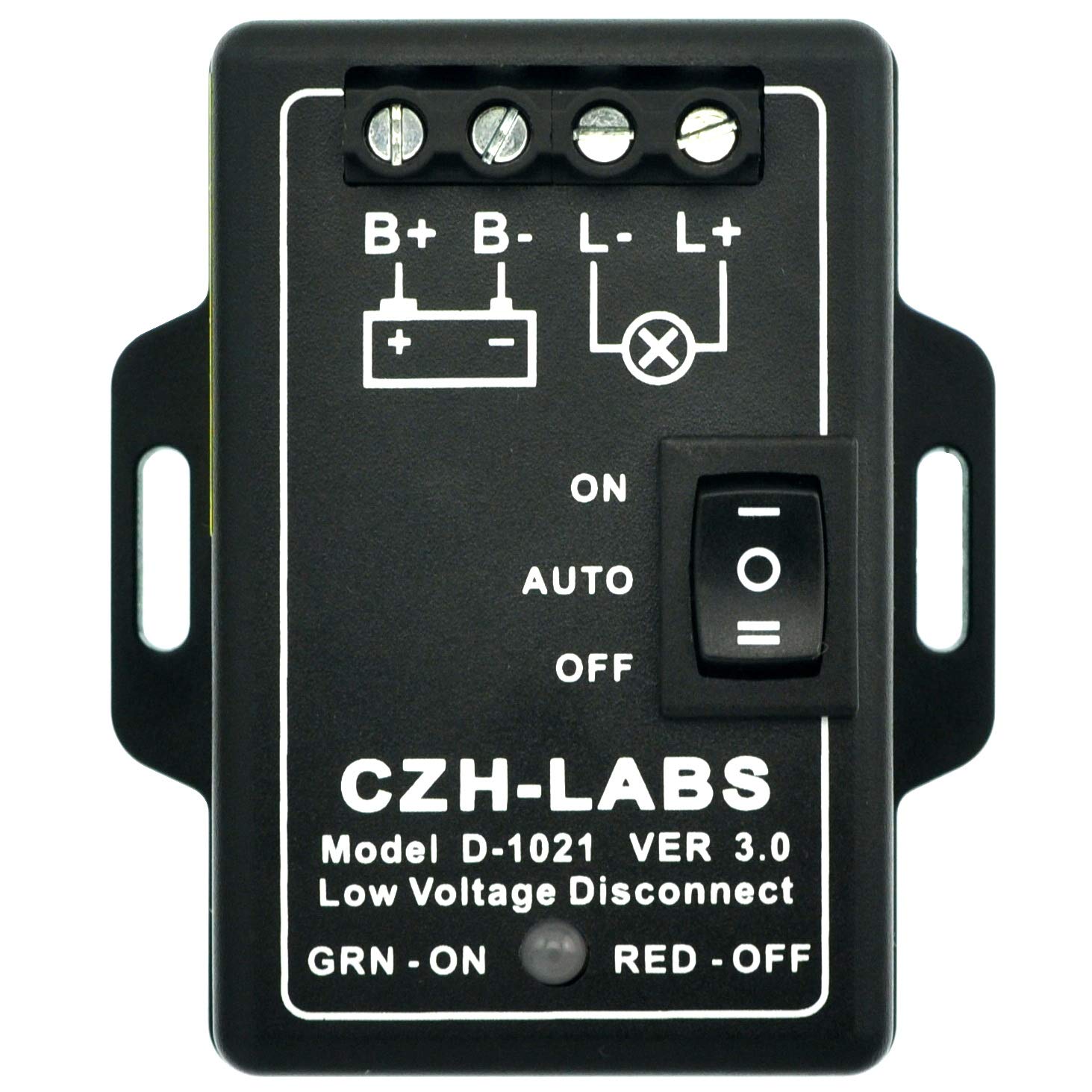

Installation is straightforward for panel mounting, and the rugged black ABS housing is designed for typical control environments. The visual LED feedback and compact form factor make it easy to integrate into existing panels without crowding adjacent components.
FAQ
Q: What voltage and current does the CZH-LABS LVD support?
A: Operates DC 6–18V with up to 30A, ideal for typical 12V battery systems.
Q: How does the AUTO disconnect/reconnect mode work?
A: In AUTO, the load disconnects at the set low voltage and reconnects after the voltage rises for 5 seconds.
